Whole House Filter with Brackets - Triple, 10" Blue, Carbon, Sediment with Ball Valves

  • Whole House Filter with Brackets - Triple, 10" Blue, Carbon, Sediment with Ball Valves
  • Whole House Filter with Brackets - Triple, 10" Blue, Carbon, Sediment with Ball Valves
  • Whole House Filter with Brackets - Triple, 10" Blue, Carbon, Sediment with Ball Valves
  • Whole House Filter with Brackets - Triple, 10" Blue, Carbon, Sediment with Ball Valves
Click Image(s) to Enlarge
Item#WHB10T34BLSCBV
Regular Price:$112.95
Sale Price:$103.95
This item is currently out of stock!
Questions? Contact Us!

Product Description

*******This Product has been******* *****customized/built in the USA*****

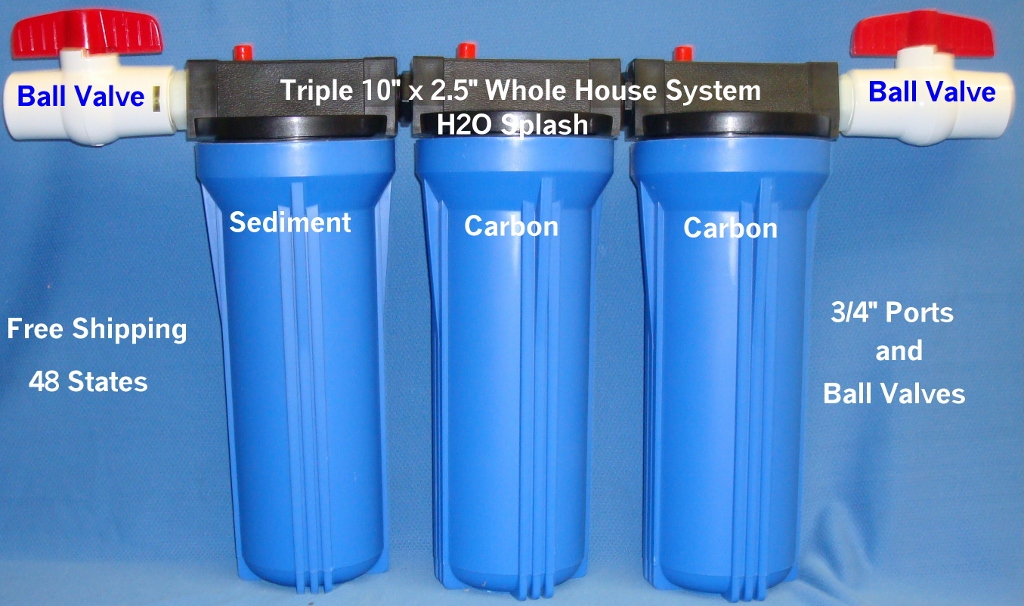

10 Inch Triple Whole House Water Filter - Carbon & Sediment Filters with Ball Valves

This Triple 10 inch whole house water filter has 3/4 inch threaded inlet and outlet ports. The housings are suitable for use with 2 1/2 by 10 inch filters. Two carbon filter and one sediment filter are included in this package.

The micron rating for these filters is your choice - click on the Sediment and Carbon Micron options above and make your selection. Carbon Filter end cap color will vary by micron rating.




This Package includes:

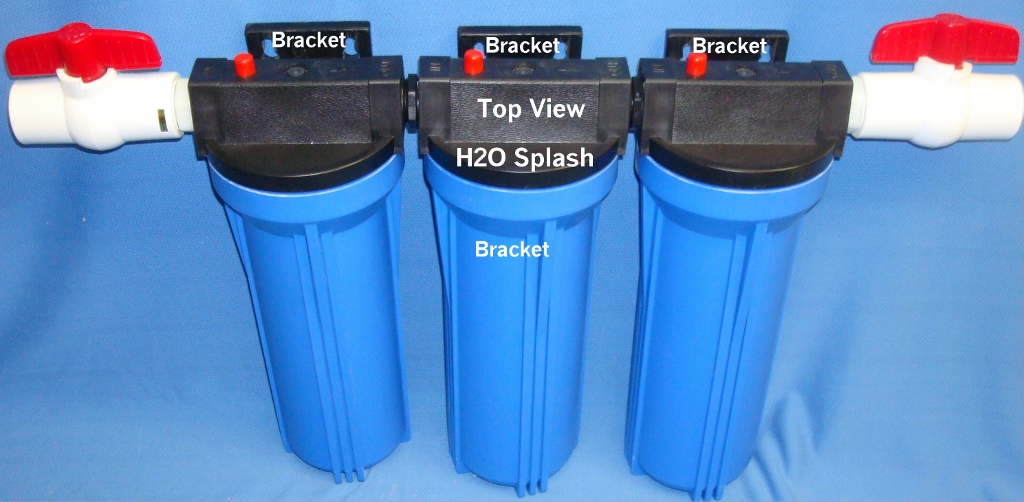

> Three (3) 10 Inch x 2.5 inch Filter Housings with Brackets

> This is a high impact/reinforced housing

> Unit has a pressure release button

> 3/4 inch inlet and outlet ports

> Two 10 inch by 2 1/2 inch carbon filter

> One 10 inch by 2 1/2 inch sediment filter

> Two Ball Valves

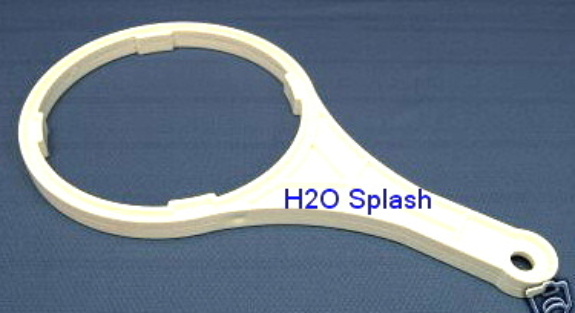

> One filter wrench




10 Inch Housing

Top quality, heavy duty construction housing with 3/4 inch inlet and outlet ports.

Housing Specifications and Data Information:

> Material (sump and cap) - Polypropylene

> Material (o-ring) - EPDM

> Max. Temp. - 125 degrees (F)

> Min. Temp. - 40 degrees (F)

> Max. PSI - 125 psi (6.3 bar)

> Cycle Tests (@ 125 psi) - 150,000 cycles

> Threads - Straight

Potential Uses for 10" Housing:

* Whole house filter to hold (sediment or Carbon)

* Pre-Filter housing for Reverse Osmosis

* Housing for a DI cartridge

* Pressure Release Button

* Housing for counter top water filter

* Suitable for homes and commercial uses

* Filters - sediment and carbon available in our store

* Visit other items on this web site for water components

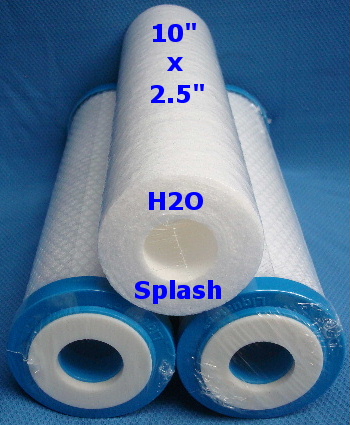

Sediment Filter

This 10 inch sediment filter is made of 100% high purity polypropylene, surfactant free, binder free and adhesive free. This sediment has a special design to trap particulates. Four layers, with outside-in flow and step-by-step micron rating that effectively retains particles and extends the filter life with a much lower pressure drop. Sediment filters are in compliance with FDA requirements and they are NSF Standard 42 certified. Specifications; One (1), five (5), ten (10) or twenty (20) micron rating, up to 8 gallon flow rate, 10" length and 2 1/2 OD"

They have great particle holding capacity and are being used in a variety of applications such as pre-filters for reverse osmosis systems, pre-filters for water filtration units, aquarium pre-filters and being used as sediment collectors for whole house systems.

Specifications and Data Information - Sediment Filter:

Filter - Length 9 7/8" x 2.5" diameter (commonly referred to as 10" x 2.5")

Enhanced Dirt Holding Capacity

High Consistency Melt Blow Polypropylene

Easy and Safe Cartridge Incineration and Disposal

Free of Surfactants, Binders and Adhesives

Ideal for use as pre-treatment to a RO Reverse Osmosis Drinking Water System

Meets FDA compliance for food and beverage contact

Contains no wetting agents, solvents, antistatic agents or binders.

Available Micron Ratings: 1, 5, 10, 20 and 50

Bonded micro-fiber construction offers no fiber release

Superior chemical resistance and is not prone to bacterial attack

Performance Tested - NSF and FDA certified




Carbon Filter

The carbon block filters are manufactured with high purity Coconut Shell activated carbon with extruded activated carbon block construction. They do not release carbon fines and they are FDA compliant and they are NSF Standard 42 certified. These solid carbon block filters have combined the adsorption capability of carbon, with the ability of a solid block material to selectively strain out particles from the water that is being forced through the filter. Specifications; .5, one (1), five (5), or ten (10) micron rating, 10" length and 2 1/2 OD"

Activated carbon has an electro-positive charge added which results in this type of carbon attracting more chemicals and impurities. As the water passes through the positively charged carbon, the contaminants with their negative ions, are attracted to the carbon granules and thus extracted from the water.

The block of carbon strains out sediment, dirt, bacteria, microscopic worms, algae, asbestos and cryptosporidium. With just water pressure, this compacted solid carbon block is designed to filter sub micron size particles. This microstraining of the water will provide clean and clear drinking water.

Activated carbon bonds to thousands of known chemicals. As water is forced through this solid block of carbon, it is forced to slow its flow speed and thereby increase the contact time with the carbon. This slowing of the flow allows the carbon bonding to take place and remove chemical pollutants like toxins, THM's, chlorine, pesticides, bad tastes, odors, etc.

Solid block carbon filters are very uniform and do not channel or bypass as conventional granular activated carbon (GAC) filters are know to do.

Because of the density of the solid block carbon filters, there is no room for bacteria to grow, so these filters do not become an incubator for bacteria as GAC filter are known to be.

These carbon block filters will fit most types of 10" filter housings on the market today and as noted previously, they will fit into the housings on nearly all water filtration and reverse osmosis systems. CTO carbon block filters preform well in both commercial and residential applications and they are the most widely used carbon filters on the market today.



Specifications and Data Information - Carbon Filter:

Filter - Length 9 3/4" x 2 1/2" diameter (commonly referred to as 10" x 2 1/2")

>99.5% Reduction of Particles (5 micron filter)

Enhanced Dirt Holding Capacity

No Release of Carbon Fines

Significantly Exceeds Performance of Traditional GAC and PAC Filters

8,000 gallons of chlorine removal capacity

Performance Tested - NSF and FDA certified




Need extra filters - click on Sediment Filters, Carbon Filters or Sediment and Carbon Combos below and you will be transferred to those categories

Sediment Filters

Carbon Filters

Sediment and Carbon Combos




Check our variety of whole house units - slim line, standard and Big Blue - residential and commercial - clear, blue and white - 1/4 inch, 3/4 inch, 1 inch and 1 1/2 inch inlet/outlet ports.
