*******This Product has been******* *****customized/built in the USA*****
Clear 10 Inch x 4.5 Inch Big Blue Triple Whole House Water Filter - 2 Carbons & 1 Sediment Filters - 12 Gallon Per Minute Ultra Violet Light Sterilizer. (Dimensions for this system are: height - 17 inches, depth - 8 inches and width - 38 inches)
This triple Big Blue 10" x 4.5" whole house water filter has 1 inch threaded inlet and outlet ports. These housings are suitable for use with Big Blue (4 1/2 by 10 inch filters). Two carbon filters and one sediment filter are included in this package.The Ultraviolet unit kills 99.9% of harmful bacteria (E Coli, Coliforms, Viruses Fungi, Algae, Spores etc.). This is a quality unit from a company with over 20 years of water experience and hundreds of water items listed here on our web site.
The micron rating for these filters is your choice - click on the Sediment Micron and the 1st and 2nd Carbon Micron options above and make your selection. Note: You will receive 1 sediment from your sediment selection and 1 carbon filter from each of your 1st and 2nd carbon selections (total of 2 carbons). Filter end cap color will vary by micron rating.
This Package includes:
> Three (3) 10 Inch x 4.5 inch Filter Housings
> This is a high impact/reinforced housing
> Unit has a pressure release button
> One inch inlet and outlet ports

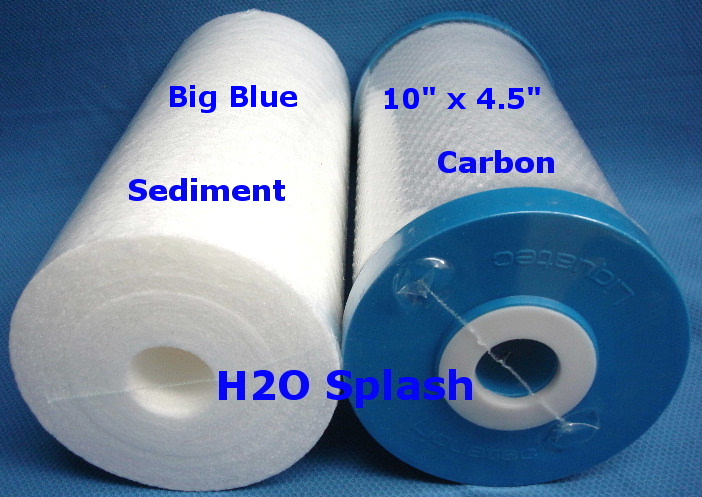

> One (1) 10 inch by 4 1/2 inch sediment filter
> Two (2) 10 inch by 4 1/2 inch carbon filters
> One Ultra Violet Light
> One (1) mounting bracket
> One (1) filter wrench
10 Inch x 4.5 Inch Housing
Top quality, heavy duty construction housing with one inch inlet and outlet ports. The unit has a pressure release button for ease of filter replacement.
Housing Specifications and Data Information:
> Material (sump and cap) - Polypropylene
> Material (o-ring) - EPDM
> Max. Temp. - 125 degrees (F)
> Min. Temp. - 40 degrees (F)
> Max. PSI - 50 PSI
> Threads - Straight
Potential Uses for 10" x 4.5" Housing:
* Whole house filter to hold (sediment or Carbon)
* Pre-Filter housing for Reverse Osmosis
* Housing for a DI cartridge
* Housing for counter top water filter
* Suitable for homes and commercial uses
* Filters - sediment and carbon available in our store
* Visit other items on this web site for water components
This 10 inch x 4.5 inch sediment filter is made of 100% high purity polypropylene, surfactant free, binder free and adhesive free. This sediment has a special design to trap particulates. Four layers, with outside-in flow and step-by-step micron rating that effectively retains particles and extends the filter life with a much lower pressure drop. Sediment filters are in compliance with FDA requirements and they are NSF Standard 42 certified. Available in; One (1), five (5), ten (10), twenty (20) or fifty (50) micron rating, up to 8 gallon flow rate, 10" length and 4 1/2 OD"
They have great particle holding capacity and are being used in a variety of applications such as pre-filters for reverse osmosis systems, pre-filters for water filtration units, aquarium pre-filters and being used as sediment collectors for whole house systems.
Specifications and Data Information - Sediment Filter:
Filter - Length 10" x 4.5" diameter
Enhanced Dirt Holding Capacity
High Consistency Melt Blow Polypropylene
Easy and Safe Cartridge Incineration and Disposal
Free of Surfactants, Binders and Adhesives
Ideal for use as pre-treatment to a RO Reverse Osmosis
Drinking Water System
Meets FDA compliance for food and beverage contact
Contains no wetting agents, solvents, antistatic agents or binders.
Available Micron Ratings:
1, 5, 10, 20 and 50
Bonded micro-fiber construction offers no fiber release
Superior chemical resistance and is not prone to bacterial attack
Performance Tested - NSF and FDA certified
The carbon block filters are manufactured with high purity Coconut Shell activated carbon with extruded activated carbon block construction. They do not release carbon fines and they are FDA compliant and they are NSF Standard 42 certified. These solid carbon block filters have combined the adsorption capability of carbon, with the ability of a solid block material to selectively strain out particles from the water that is being forced through the filter. Available in; one (1), five (5), or ten (10) micron rating, 10" length and 4 1/2 OD"
Activated carbon has an electro-positive charge added which results in this type of carbon attracting more chemicals and impurities. As the water passes through the positively charged carbon, the contaminants with their negative ions, are attracted to the carbon granules and thus extracted from the water.
The block of carbon strains out sediment, dirt, bacteria, microscopic worms, algae, asbestos and cryptosporidium. With just water pressure, this compacted solid carbon block is designed to filter sub micron size particles. This microstraining of the water will provide clean and clear drinking water.
Activated carbon bonds to thousands of known chemicals. As water is forced through this solid block of carbon, it is forced to slow its flow speed and thereby increase the contact time with the carbon. This slowing of the flow allows the carbon bonding to take place and remove chemical pollutants like toxins, THM's, chlorine, pesticides, bad tastes, odors, etc.
Solid block carbon filters are very uniform and do not channel or bypass as conventional granular activated carbon (GAC) filters are know to do.
Because of the density of the solid block carbon filters, there is no room for bacteria to grow, so these filters do not become an incubator for bacteria as GAC filter are known to be.
These carbon block filters will fit most types of 10" x 4.5" filter housings on the market today and as noted previously, they will fit into the housings on nearly all water filtration and reverse osmosis systems. CTO carbon block filters preform well in both commercial and residential applications and they are the most widely used carbon filters on the market today.
Specifications and Data Information - Carbon Filter:
Filter - Length 10" x 4 1/2" diameter
>99.5% Reduction of Particles (5 micron filter)
Enhanced Dirt Holding Capacity
No Release of Carbon Fines
Significantly Exceeds Performance of Traditional GAC and PAC Filters
Up to 20,000 gallons of chlorine removal capacity
Performance Tested - NSF and FDA certified
Ultraviolet Light (Sterilizer) with UV Lamp Ballast
Ultraviolet is recognized as superior compared to other methods of disinfection;
* UV is very safe. There are no dangerous chemicals to handle or monitor. Disinfection results are immediate.
* UV has a low initial system cost and a very low cost of operation.
* UV is environmentally friendly. There are no byproducts from the UV process, and nothing is discharged into the environment.
* UV causes no change to the taste or odor of the water disinfected. It is impossible to over-treat water with UV.
* UV systems are very easy to install and maintain.
* UV disinfection is compatible with all other forms of water treatment.
How UV works.
The water enters an ultraviolet sterilization chamber where any viruses, bacteria, mold, and other living microorganisms are bombarded with special, intense light of a specific wave length. The UV light penetrates the wall of the organisms and attacks their DNA structure leaving the organism unable to reproduce (or
"dead"). UV technology is recognized by the EPA as one of four approved methods of sterilizing
water, and is preferable over the other three methods (chlorine, iodine, and distillation) due to the
cost of treatment and effectiveness of UV (UV works almost instantaneously, leaving no residuals or chemicals in the water). This UV module operates for a full year at 30,000 microwatt seconds/cm². As a point of reference, the table below is a list of common bacteria and viruses, and the dosage required to render them harmless.
BACTERIA : Bacillus, anthacis B., Megaatherium sp. (veg.), B. Megaatherium sp. (spores),
B. paratyphosus, B. subtilis, B. subtilis spores, Clostridium tetani, Corynebacterium diphtheria,
Dysentery baccili, Eberthella typhosa, Escherichia coli, Leptospira, Micrococcus candidus,
Micrococcus sphaeroides, Mycobacterium tuberculosis, Neisseria catarrhalis, Phytomonas
tumefaciens, Proteus vulgaris, Pseudomonas aeruginosa, Pseudomonas fluorescens, Salmonella,
S. enteritidis, S. typhimurium, S. typhosa, Sarcina lutea, Serratia marcescens, Shigella
dysenteriae, Shigella paradysenteriae, Spirillum rubrum, Staphylococcus albus, Staphylococcus
aureus, Streptococcus hemolyticus, Streptococcus viridans, Vibrio cholerae
MOLD SPORES : Mucor racemosus A, Mucor racemosus B, Oospora lactis
PROTOZOA : Chlorella vulgaris (algae)
VIRUSE : Bacteriophage (E. coli), Hepatitus virus, Influenza virus, Polio virus
YEAST : Bakers' yeast, Brewers' yeast, Common yeast cake, Saccharomyces cerevisiae,
Saccharomyces ellipsoideus, Saccharomyces sp.
This unit can be used with a Reverse Osmosis system, or a Whole House filter system. This unit will work well for you in untreated water such as a well, lake and river water. The UV bulb is encased within a stainless steel casing.
UV Housing with 3/4 inch FPT ports
UV Lamp - 9,000 lamp hours
Stainless Steel sleeve and housing
120 V/60 Hz Ballast
Flow Rate 12 gallon per minute (13 gallon in DI, RO or Distilled Water)
Max. Pressure 125 psi
Max. Temperature 104
Size 3 1/4" x 37 1/4"
Lamp Life 9000 Hours
These UV units are individually wrapped and fresh from the factory.
