10 Inch Clear Whole House Water Filter - Sediment Filter, Wrench and Ball Valve
This single clear whole house water filter has 3/4 inch threaded inlet and outlet ports and one ball valve to provide ease of filter replacement. The housing is suitable for use with 2 1/2 by 10 inch filters. One sediment filter is included in this package.
The micron rating for the filter is your choice - click on the Sediment Micron option above and make your selection.
This Package includes:

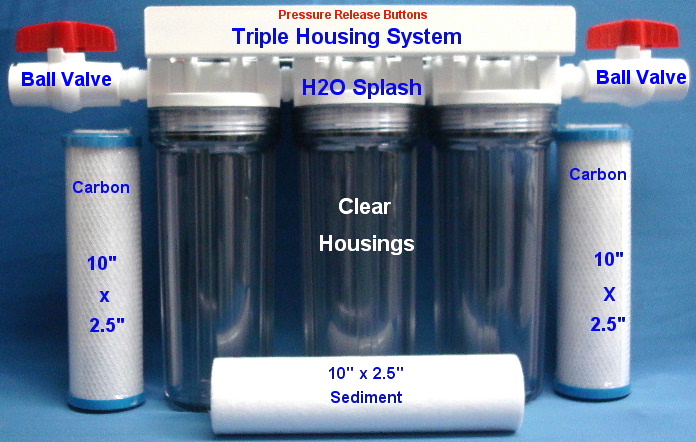

> One (1) Clear 10 Inch x 2.5 inch Filter Housing
> This is a high impact/reinforced housing
> Unit has a pressure release button
> 3/4 inch inlet and outlet ports
> ** One (1) 3/4 inch ball valve
> One (1) 10 inch by 2 1/2 inch sediment filter
> One (1) mounting bracket
> One (1) filter wrench
**One (1) reinforced heavy duty PVC ball valve (maintenance free and corrosion free) - to be used on either the inlet or the outlet side of a whole house water unit. On the inlet side it can be used to shut off the incoming water supply. On the outlet side of the whole house water filter unit it can be used to shut off the back flow of water from the water pipes located at a higher level and thereby avoid a water spill when changing the filter elements. The ball valve is shipped un-installed to avoid unit damage during shipment.
Clear Housing
Top quality, heavy duty construction clear housing with 3/4 inch inlet and outlet ports. The unit has a pressure release button for ease of filter replacement. As noted above, the ball valve will provide assistance when replacing the filter. Clear housings will permit you to observe the filters and thereby allow you to monitor the depletion of the filters. This will take the guess work out of when to replace your filters.

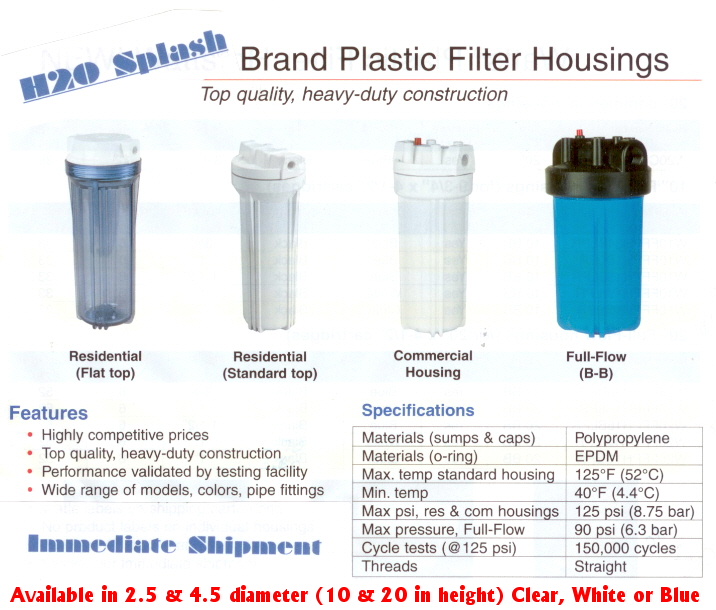

Housing Specifications and Data Information:
> Material (sump and cap) - Polypropylene
> Material (o-ring) - EPDM
> Max. Temp. - 125 degrees (F)
> Min. Temp. - 40 degrees (F)
> Max. PSI - 50 PSI
> Threads - Straight
Potential Uses for 10" Clear Housing:
* Whole house filter to hold (sediment or Carbon)
* Pre-Filter housing for Reverse Osmosis
* Housing for a DI cartridge
* Pressure Release Button
* Housing for counter top water filter
* Suitable for homes and commercial uses
* Filters - sediment and carbon available in our store
* Visit other items on this web site for water components
SEDIMENT FILTERS
These 10 inch x 2.5 inch sediment filters are made of 100% high purity polypropylene, surfactant free, binder free and adhesive free. These sediments have a special design to trap particulates. Four layers, with outside-in flow and step-by-step micron rating that effectively retains particles and extends the filter life with a much lower pressure drop. Sediment filters are in compliance with FDA requirements and they are NSF Standard 42 certified. Specifications; One (1), five (5), ten (10), twenty (20) or fifty (50) micron rating, up to 8 gallon flow rate, 10" length and 2.5 OD"
They have great particle holding capacity and are being used in a variety of applications such as pre-filters for reverse osmosis systems, pre-filters for water filtration units, aquarium pre-filters and being used as sediment collectors for whole house systems.
Sediment Filter Specifications and Data Information:
Filter - Length 9 7/8" x 2.5" diameter (commonly referred to as 10" x 2.5")
Enhanced Dirt Holding Capacity
High Consistency Melt Blow Polypropylene
Easy and Safe Cartridge Incineration and Disposal
Free of Surfactants, Binders and Adhesives
Ideal for use as pre-treatment to a RO Reverse Osmosis
Drinking Water System
Meets FDA compliance for food and beverage contact
Contains no wetting agents, solvents, antistatic agents or binders.
Available Micron Ratings:
1, 5, 10, 20 and 50
Bonded micro-fiber construction offers no fiber release
Superior chemical resistance and is not prone to bacterial attack
Performance Tested - NSF and FDA certified
Need extra filters - click on Sediment Filters, Carbon Filters or Sediment and Carbon Combos below and you will be transferred to those categories
Sediment FiltersCarbon FiltersSediment and Carbon Combos
Check our variety of housings - slim line, standard and Big Blue - residential and commercial - clear, blue and white - 1/4 inch, 3/4 inch, 1 inch and 1 1/2 inch inlet/outlet ports.
