Whole House Filter - Single, 20" BB - Clear Housing - 1" Ports, Sediment/ Ball Valve

  • Whole House Filter - Single, 20" BB - Clear Housing - 1" Ports, Sediment/ Ball Valve
  • Whole House Filter - Single, 20" BB - Clear Housing - 1" Ports, Sediment/ Ball Valve
  • Whole House Filter - Single, 20" BB - Clear Housing - 1" Ports, Sediment/ Ball Valve
  • Whole House Filter - Single, 20" BB - Clear Housing - 1" Ports, Sediment/ Ball Valve
Click Image(s) to Enlarge
Item#WHBB20S1CLSBV
Regular Price:$153.95
Sale Price:$139.95
Qty:
Questions? Contact Us!

Product Description

*******This Product has been******* *****customized/built in the USA*****

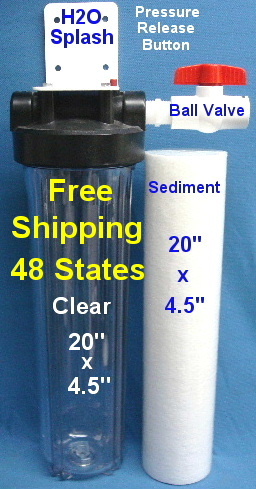

20 Inch Clear Big Blue Whole House Water Filter - includes Sediment Filter, Ball Valve and Wrench

This single Clear 20" x 4.5" Big Blue whole house water filter has one inch threaded inlet and outlet ports The housing is suitable for use with 4 1/2 by 20 inch filters. One sediment filter is included in this package.

The micron rating for the filter is your choice - click on the Sediment Micron option above and make your selection.




This Package includes:

> One (1) 20 Inch x 4.5 inch Filter Housing (Clear)

> This is a high impact/reinforced housing

> Unit has a pressure release button

> one inch inlet and outlet ports

> One (1) 20 inch by 4 1/2 inch sediment filter

> One (1) mounting bracket (extra heavy duty) -this bracket alone sells for $25.00 on most web sites

> One (1) filter wrench

> **One Ball Valve

**One (1) reinforced heavy duty PVC ball valves (maintenance free and corrosion free) - to be used on either the inlet or the outlet side of a whole house water unit. On the inlet side it can be used to shut off the incoming water supply. On the outlet side of the whole house water filter unit it can be used to shut off the back flow of water from the water pipes located at a higher level and thereby avoid a water spill when changing the filter elements. The ball valve is shipped un-installed to avoid unit damage during shipment.




20 Inch x 4.5 Inch BB Housing

Top quality, Clear, heavy duty construction housing with one inch inlet and outlet ports. The unit has a pressure release button for ease of filter replacement.

Housing Specifications and Data Information:

> Material (sump and cap) - Polypropylene

> Material (o-ring) - EPDM

> Max. Temp. - 125 degrees (F)

> Min. Temp. - 40 degrees (F)

> Max. PSI - 75 PSI (recommended 60 PSI)

> Threads - Straight

Potential Uses for 20" Housing:

* Whole house filter to hold (sediment or Carbon)

* Pre-Filter housing for Reverse Osmosis

* Housing for a DI cartridge

* Housing for counter top water filter

* Suitable for homes and commercial uses

* Filters - sediment and carbon available in our store

* Visit other items on this web site for water components




SEDIMENT FILTERS

These 20 inch x 4.5 inch sediment filters are made of 100% high purity polypropylene, surfactant free, binder free and adhesive free. These sediments have a special design to trap particulates. Four layers, with outside-in flow and step-by-step micron rating that effectively retains particles and extends the filter life with a much lower pressure drop. Sediment filters are in compliance with FDA requirements and they are NSF Standard 42 certified. Specifications; One (1), five (5), ten (10) or twenty five (25) micron rating, up to 15 gallon flow rate, 20" length and 4.5 OD"

They have great particle holding capacity and are being used in a variety of applications such as pre-filters for reverse osmosis systems, pre-filters for water filtration units, aquarium pre-filters and being used as sediment collectors for whole house systems.

Sediment Filter Specifications and Data Information:

Filter - Length 20" x 4.5" diameter

Enhanced Dirt Holding Capacity

High Consistency Melt Blow Polypropylene

Easy and Safe Cartridge Incineration and Disposal

Free of Surfactants, Binders and Adhesives

Ideal for use as pre-treatment to a RO Reverse Osmosis Drinking Water System

Meets FDA compliance for food and beverage contact

Contains no wetting agents, solvents, antistatic agents or binders.

Available Micron Ratings: 1, 5, 10 and 25

Bonded micro-fiber construction offers no fiber release

Superior chemical resistance and is not prone to bacterial attack

Performance Tested - NSF and FDA certified




Need extra filters - click on Sediment Filters, Carbon Filters or Sediment and Carbon Combos below and you will be transferred to those categories

Sediment Filters

Carbon Filters

Sediment and Carbon Combos




Check our variety of housings - slim line, standard and Big Blue - residential and commercial - clear, blue and white - 1/4 inch, 3/4 inch, 1 inch and 1 1/2 inch inlet/outlet ports.
