4 Stage RO+Booster Pump + Permeate Pump (Clear Housings)

  • 4 Stage RO+Booster Pump + Permeate Pump (Clear Housings)
  • 4 Stage RO+Booster Pump + Permeate Pump (Clear Housings)
  • 4 Stage RO+Booster Pump + Permeate Pump (Clear Housings)
  • 4 Stage RO+Booster Pump + Permeate Pump (Clear Housings)
Click Image(s) to Enlarge
Item#RO4CL50SCPBPermNT
Regular Price:$419.95
Sale Price:$380.95
Qty:
Questions? Contact Us!

Product Description

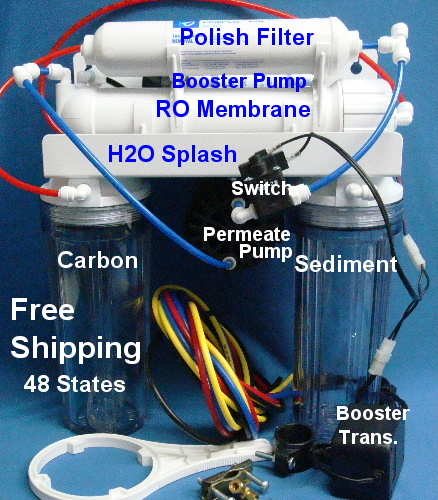

*******This Product has been******* *****customized/built in the USA***** This RO four (4) stage system with both a Booster Pump (to increase incoming PSI) and a Permeate Pump (to decrease waste water) is the most efficient RO system on the market and will provide you top quality water. Clear housings, on the two pre-filters, not only make this unit sparkle, this feature also takes the guess work out of replacement of filters. The Booster Pump will increase the incoming water PSI resulting in increased efficiency for the RO membrane. The Permeate Pump will :  1) reduce wastewater by up to 80%, 2) increase delivery pressure, 3) provide faster RO production, 4) improve water quality and 5) extend filter/membrane life. This Model RO4CL50SCPBPermNT is available with reverse osmosis membrane options of - 24 gpd, 35 gpd, 50 gpd, 100 gpd or 150 gpd- select your gallons per day system from the RO membrane option listed above

Note: 1 The pricing listed above is for this 4 stage system with a 50 gallon per day RO membrane. The RO membrane capacity is your choice and the price for the system will vary by your selection of a RO membrane capacity from the option above.

Note: 2 The micron rating for these filters is your choice - click on the Sediment Micron and the Carbon Micron options above and make your selection. Note: You will receive 1 sediment from your sediment selection and 1 carbon filter from your carbon selection. Filter end cap color will vary by micron rating.

This Reverse Osmosis four stage system will provide top quality water and it has clear housings on the pre-filters, which not only makes this unit sparkle, this feature also takes the guess work out of replacement of filters. This is a quality unit from a company with over 20 years of water experience and hundreds of water items listed here on this web site.




This system includes:

1) 50 gallon per day membrane (Optional capacity RO membrane available above)

2) Membrane housing

3) 2 clear housings - 10 inch

4) 1 Sediment filter - (9 3/4" x 2.5")

5) 1 Carbon block filter - (9 3/4" x 2.5")

6) 1 Booster Pump

7) 1 Permeate Pump

8) Saddle valve kit

9) Flow restrictor (to match the RO membrane size selected above)

10) Automatic shut-off valve

11) Check valve

12) Drain clamp

13) Filter wrench

14) Tubing - 4 colors @ 10 foot each - total of 40 feet

15) Fittings

16) 1 Inline carbon filter (Polish Filter)

17) 1 bracket

This is an assembled complete system (ready to be installed) and the installation instructions will be emailed.

Special Note # 1:

All of the sediment and carbon filter housings are standard 10 inch clear housings with 1/4 inch thread inlet and outlet ports. Clear housings will permit you to observe the filters and thereby allow you to monitor the depletion of the filters. This will take the guess work out of when to replace your filters.

Special Note # 2:

This RO system comes without a storage tank and without a faucet kit. The system is customized for users with an existing storage tank or for dispensing directly into an aquarium or other holding system.




CSM Membrane Elements

CSM reverse osmosis membrane elements for home drinking water are the among industry's most reliable. Advanced membrane technology and automated fabrication allow these elements to deliver consistent performance that equipment suppliers, water treatment dealers, and residential customers can rely on. CSM elements are shipped dry for convenient handling and long shelf-life. Dry type elements are vacuum leak tested using the Sandiego Protocol so that the performance shall satisfy their specifications. These elements are NSF/ANSI Standard 58 listed.

SPECIFICATIONS: General Features



Model Flow REJ. DIAM. LEN. Test Conditions Temp.
RE1812-24 24gpd 98% 1.8" 12" 60psi/250ppm 25C/77F.
RE1812-35 35gpd 98% 1.8" 12" 60psi/250ppm 25C/77F.
RE1812-50 50gpd 98% 1.8" 12" 60psi/250ppm 25C/77F.
RE1812-80 80gpd 98% 1.8" 12" 60psi/250ppm 25C/77F.
RE2012-100 100gpd 98% 2" 12" 60psi/250ppm 25C/77F.
RE2012-150 150gpd 93% 2" 12" 50psi/100ppm 25C/77F.




1. The stated product performance is based on data taken after 30 minutes of operation at the following test conditions: * 250 mg/L NaCl solution at 60 psig applied pressure * 77 degrees F (25 C) * pH 6.5-7.0

2. Dry type elements are vacuum leak tested using the San Diego Protocol.

3. All elements are packaged in a polyethylene bag containing 1.0% SBS (sodium bisulfite) solution.




Membrane type: Thin-Film Composite

Membrane material: Polyamide (PA)

Element configuration: Spiral-Wound, Tape Wrapping




Dimensions -



Model A B C D E
RE1812-24 .67 inch .87 inch 11.73 inch 1.77 inch .98 inch
RE1812-35 .67 inch .87 inch 11.73 inch 1.77 inch .98 inch
RE1812-50 .67 inch .87 inch 11.73 inch 1.77 inch .98 inch
RE1812-80 .67 inch .87 inch 11.73 inch 1.77 inch .98 inch
RE2012-100 .67 inch .47 inch 11.73 inch 1.91 inch .98 inch
RE2012-150 .67 inch .47 inch 11.73 inch 1.91 inch .98 inch






A) Diameter of Center Feed Post
B) Length from end of feed post to membrane wrap
C) Over-all length from end of feed post to end of Permeate post
D) Diameter of membrane wrap
E) Length from membrane wrap to end of Permeate post

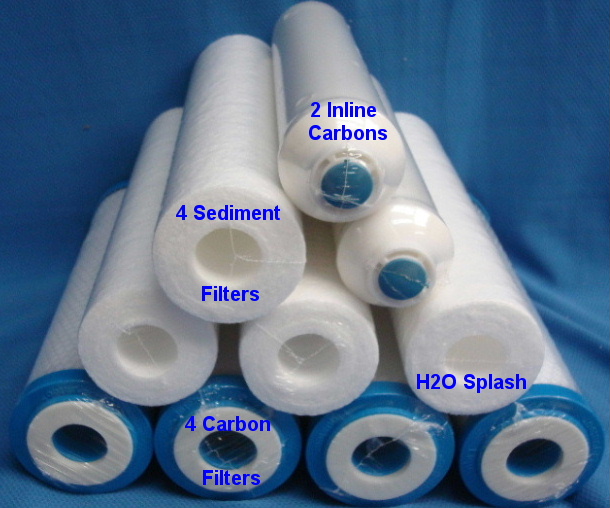

SEDIMENT FILTERS

These 10 inch x 2.5 inch sediment filters are made of 100% high purity polypropylene, surfactant free, binder free and adhesive free. These sediments have a special design to trap particulates. Four layers, with outside-in flow and step-by-step micron rating that effectively retains particles and extends the filter life with a much lower pressure drop. Sediment filters are in compliance with FDA requirements and they are NSF Standard 42 certified. Specifications; One (1), five (5), ten (10), twenty (20) or fifty (50) micron rating, up to 8 gallon flow rate, 10" length and 2.5 OD"

They have great particle holding capacity and are being used in a variety of applications such as pre-filters for reverse osmosis systems, pre-filters for water filtration units, aquarium pre-filters and being used as sediment collectors for whole house systems.

Sediment Filter Specifications and Data Information:

Filter - Length 9 7/8" x 2.5" diameter (commonly referred to as 10" x 2.5")

Enhanced Dirt Holding Capacity

High Consistency Melt Blow Polypropylene

Easy and Safe Cartridge Incineration and Disposal

Free of Surfactants, Binders and Adhesives

Ideal for use as pre-treatment to a RO Reverse Osmosis Drinking Water System

Meets FDA compliance for food and beverage contact

Contains no wetting agents, solvents, antistatic agents or binders.

Available Micron Ratings: 1, 5, 10, 20 and 50

Bonded micro-fiber construction offers no fiber release

Superior chemical resistance and is not prone to bacterial attack

Performance Tested - NSF and FDA certified




CARBON FILTER

This carbon block filter is manufactured with high purity Coconut Shell activated carbon with extruded activated carbon block construction. They do not release carbon fines and they are FDA compliant and they are NSF certified. These solid carbon block filters have combined the adsorption capability of carbon, with the ability of a solid block material to selectively strain out particles from the water that is being forced through the filter.

Activated carbon has an electro-positive charge added which results in this type of carbon attracting more chemicals and impurities. As the water passes through the positively charged carbon, the contaminants with their negative ions, are attracted to the carbon granules and thus extracted from the water.

The block of carbon strains out sediment, dirt, bacteria, microscopic worms, algae, asbestos and cryptosporidium. With just water pressure, this compacted solid carbon block is designed to filter sub micron size particles. This microstraining of the water will provide the cleanest and clearest drinking water available.

Activated carbon bonds to thousands of known chemicals. As water is forced through this solid block of carbon, it is forced to slow its flow speed and thereby increase the contact time with the carbon. This slowing of the flow allows the carbon bonding to take place and remove chemical pollutants like toxins, THM's, chlorine, pesticides, bad tastes, odors, etc.

Solid block carbon filters are very uniform and do not channel or bypass as conventional granular activated carbon (GAC) filters are know to do.

Because of the density of the solid block carbon filters, there is no room for bacteria to grow, so these filters do not become an incubator for bacteria as GAC filter are known to be.

These carbon block filters will fit most types of 10" x 2.5" filter housings on the market today and as noted previously, they will fit into the housings on nearly all water filtration and reverse osmosis systems. CTO carbon block filters preform well in both commercial and residential applications and they are the most widely used carbon filters on the market today.

Carbon Filter Specifications and Data Information:

Filter - Length 10" x 2.5" diameter

>99.5% Reduction of Particles (5 micron filter)

Enhanced Dirt Holding Capacity

No Release of Carbon Fines

Significantly Exceeds Performance of Traditional GAC and PAC Filters

6,000 gallons of chlorine removal capacity

Performance Tested - NSF and FDA certified




Clear Housing

It is recommended that you install a pressure regulator if your incoming water pressure exceeds 70psi. Top quality clear housing with 1/4 inch inlet and outlet ports. Clear housings will permit you to observe the filters and thereby allow you to monitor the depletion of the filters. This will take the guess work out of when to replace your filters.

Housing Specifications and Data Information:

> Material (sump and cap) - Polypropylene

> Material (o-ring) - EPDM

> Max. Temp. - 125 degrees (F)

> Min. Temp. - 40 degrees (F)

> Max. PSI - 50 PSI

> Threads - Straight






Inline Carbon Water Filter

This 10" inline filter can be used with an Ice maker & Refrigerator, Reverse Osmosis system, Aquarium, coffee maker and other applications that require filtered water.

Taste & Odor Removal

Specifications:

Maximum Flow .75 GPM

Maximum Pressure 50 PSI

Maximum Temp 100 F

Service Life 1500 Gallons

Inline filters are composed of a high performance granulated activated carbon that polishes the product water (reverse osmosis system) from the storage tank to your water source requirement, eliminating taste and odor problems prior to use.

The activated carbon in this filter has an electro-positive charge added which results in this type of carbon attracting more chemicals and impurities. As the water passes through the positively charged carbon, the contaminants with their negative ions, are attracted to the carbon granules and thus extracted from the water.




Booster Pump, Transformer and Tank Shut-Off Switch

This is a complete booster pump system (pump, transformer and switch) suitable for use with a Reverse Osmosis System or an application requiring increased PSI. A Reverse Osmosis membrane operates best with 50 or greater PSI and will provide quality water and improved quantity at higher PSI levels. This high feed booster pump system will optimize your RO systems performance. The pump is easy to install and the pump and pressure switch both have 1/4" quick connect fittings. We include installation instructions and a flow diagram to assist you in the set up and installation process. Note: The pump, transformer and switch are installed on this RO system so all that is required is for you to plug into an electrical outlet.

This pump will run your RO system at an ideal pressure level regardless of the pressure going in. It is very quiet and totally automatic. It shuts off automatically when the tank is full. This is a "continuous duty pump" designed for years of quiet, efficient service. You will need to listen closely to know it is running and you'll notice a remarkable change in your RO's performance. You will need 115 volt AC source. The electrical current usage is negligible.

Booster Pump

This booster pump is designed to accomplish auto suck. These pumps are 100% tested to insure extended life.

Transformer

The transformer has an input of AC 110 V and output of DC 24 V. 100% factory tested.

Tank Shut-Off Switch

The switch turns off the booster pump when the tank is full (on at 30 psi and off at 50 psi). Closed switch can be set at various shut-off pressures. 100% factory tested. Quick connect fittings.




What does a Permeate pump do to improve my RO system?

A permeate pump is a simple, yet revolutionary devise. Powered only by the hydraulic energy of the brine water lost to the drain (i.e. no electricity required), the permeate pump forces product water into the storage tank, reducing membrane back pressure and maximizing available feed pressure. These pumps dramatically improve the efficiency of the RO systems water production, while reducing wastewater by up to 80%. In other words if your current system requires 6, 7 or more gallons of tap water to produce a gallon of pure water, adding a Permeate Pump should reduce this ratio below 3:1. Permeate Pumps can also bring storage tanks up to line pressure and then shut the system down when these tanks reach capacity, eliminating the need for an ASO shut-off valve. Other benefits include higher delivery pressures, faster R.O. water production, superior water quality, and extended filter/membrane life.

A Reverse Osmosis drinking water system requires strong water pressure to force water through the R.O. membrane and at the same time to flush the contaminants (bad elements) to the drain. The lower the water pressure, the less "good" water (permeate) you get and the more "waste" water you send to the drain. The average membrane rating is based on a constant feed water pressure of (50) psi using 77 degree water. The average "real life" application provides much less favorable conditions than this. The end result is that your R.O. system is drastically under-performing because of lower pressure and water temperature. To make matters worse, the pressure storage tank that stores your RO water compounds this problem. When full the RO storage tank has an internal pressure of about 60% of your tap water . This pressure is fighting the inlet water pressure (water coming into your RO system from your tap water source). The incoming water pressure is trying to force water through the RO membrane and into the tank. Even if you have good incoming water pressure of 60 psi, as the tank gets close to full, the actual pressure on the membrane is only 20 psi because of the off-setting pressure from the storage tank. This will result in reduced permeate (good water) production and vastly increase the flow of water to the drain.

A permeate pump will improve water quality through better membrane efficiency. In the typical RO system, increased tank pressure causes decreased pressure across the membrane. This decreased pressure causes a substantial decline in system performance and efficiency. A Permeate Pump enhanced RO system maintains full pressure across the RO membrane, even as tank pressure reaches its maximum levels. This reduced back pressure from the storage tank ensures better water quality (maximum TDS reduction), longer filter life and extended membrane life. In the standard RO system, increased tank pressure results in decreased recovery rates. A Permeate Pump enhanced RO system, by automatically minimizing back pressure will accelerate recovery rates (and reduce tank refill times) by up to 65%. Reduces wastewater. In typical R.O. systems, several gallons of wasted tap water (discharged to drain) are required to create a single gallon of purified R.O. water. A Permeate Pump enhanced R.O. system, will reduce wastewater by up to 80%.

HOW DOES THE PERMEATE PUMP REDUCE WASTE WATER BY 80%

The product water production rate is dependent on the pressure across the membrane, while the waste water production rate is mostly dependent on tap water pressure. As a bladder tank fills with water, its back pressure quickly starts to reduce the working pressure across the RO membrane, while the waste water flows as always. A curve can be plotted that shows progressively worsening ratios as the tank continues to fill. Half-way through the filling time, the ratio is already 8 or 10 to 1 and can be higher than 20:1 at the moment the ASO valve shuts off completely. The permeate pump makes the membrane perform like the bladder isn't there. The pump removes the pressure from the back side of the membrane and allows the system to function as if it were not forcing water into a tank. All of the work goes into making water. So, yes the pump can save up to (80%) of the normal waste water. The permeate pump works to eliminate this line pressure and allows the water to flow freely through the RO membrane and into the pressurized storage tank. An added benefit to the permeate pump is it drastically reduces the amount of waste water an RO produces. These pumps are used for pressure ranges from 30-75psi

A RO unit with a permeate pump and 60 psi coming in will continue to produce water until pressure in the tank reaches almost 60 psi. This is especially helpful for low-pressure installations. If, for example, you have a well system that provides only 40 psi, a standard RO unit will run, but it won't run well. The unit will shut down when storage tank pressure reaches 25 psi or so. With a permeate pump, the unit will put almost the full 40 psi into the storage tank.

What's best about the permeate pump, though, is the increased efficiency. With a standard shutoff system, as the pressurized storage tank fills, the RO unit must push against an increasing amount of storage tank pressure. With the permeate pump, the unit is shielded from this pressure and the RO membrane works in a virtually pressure-free situation, even when the tank is almost full.




Check our variety of Reverse Osmosis systems - 3 stage, 4 stage, 5 stage and 6 stage units - clear and white housings, 4 gallon, 14 gallon and 20 gallon storage tanks and RO membrane capacity of 24 gpd, 35 gpd, 50 gpd, 80 gpd 100 gpd or 150 gpd.
