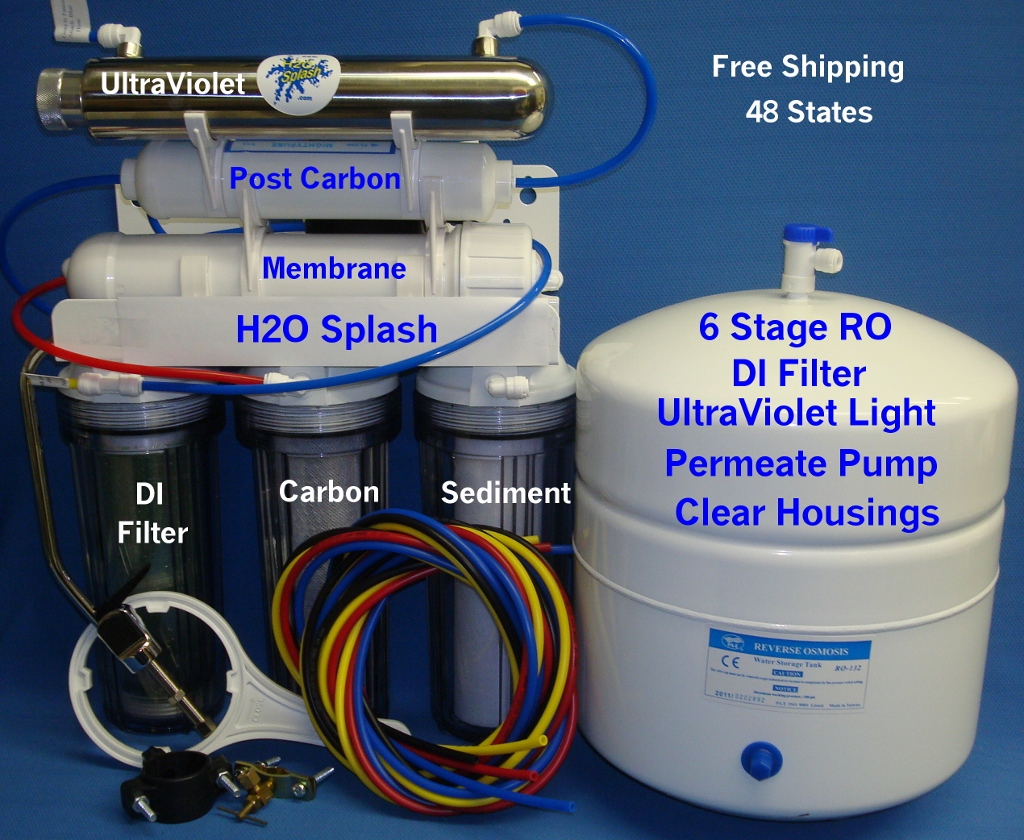

RO System - 6 Stage with 50 GPD membrane + DI + Ultraviolet System + Permeate Pump Model RO6CL50SCDIUVPPerm (system available with reverse osmosis membrane options of - 24 gpd, 35 gpd, 50 gpd, 100 gpd or 150 gpd - select your gallons per day system from the RO membrane option listed above) The Ultraviolet unit kills 99.9% of harmful bacteria (E Coli, Coliforms, Viruses Fungi, Algae, Spores etc.).The Permeate Pump will : 1) reduce wastewater by up to 80%, 2) increase
delivery pressure, 3) provide faster RO production, 4) improve water quality
and 5) extend filter/membrane life.
Note: 1 The pricing listed above is for this 6 stage system with a 50 gallon per day RO membrane. The RO membrane capacity is your choice and the price for the system will vary by your selection of a RO membrane capacity from the option above.
Note: 2 The micron rating for these filters is your choice - click on the Sediment Micron and the Carbon Micron options above and make your selection. Note: You will receive 1 sediment from your sediment selection and 1 carbon filter from your carbon selection. Filter end cap color will vary by micron rating.
This Reverse Osmosis six stage system will provide top quality water and it has clear housings on the three filters, which not only makes this unit sparkle, this feature also takes the guess work out of replacement of filters. This is a quality unit from a company with over 20 years of water experience and hundreds of water items listed here on this web site.
This system includes:
1) 50 gallon per day CSM membrane (Optional capacity RO membrane available above)
2) Membrane housing
3) 3 clear housings - 10 inch
4) 1 Sediment filter - (9 3/4" x 2.5")
5) 1 Carbon block filter - (9 3/4" x 2.5")
6) 1 Permeate Pump
7) Ultraviolet (Sterilizer) unit
8) 1 - 10" DI Refillable Filter Cartridge
9) 3.2 gallon storage tank (with tank valve)
10) Saddle valve kit
11) Flow restrictor (to match the RO membrane size selected above)
12) Check valve
13) Drain clamp
14) Filter wrench
15) Tubing - 4 colors @ 10 foot each - total of 40 feet
17) 1 Inline carbon filter (Polish Filter)
18) 1 triple bracket
19) faucet Kit
This is an assembled complete system (ready to be installed) and the package includes installation instructions.
Special Note # 1:
All of the sediment, carbon and DI filter housings are standard 10 inch clear housings with 1/4 inch thread inlet and outlet ports. Clear housings will permit you to observe the filters and thereby allow you to monitor the depletion of the filters. This will take the guess work out of when to replace your filters.
CSM Membrane Elements
CSM reverse osmosis membrane elements for home drinking water are the among industry's most reliable. Advanced membrane technology and automated fabrication allow these elements to deliver consistent performance that equipment suppliers, water treatment dealers, and residential customers can rely on. CSM elements are shipped dry for convenient handling and long shelf-life. Dry type elements are vacuum leak tested using the Sandiego Protocol so that the performance shall satisfy their specifications. These elements are NSF/ANSI Standard 58 listed.
SPECIFICATIONS: General Features
1. The stated product performance is based on data taken after 30 minutes of operation at the following
* 250 mg/L NaCl solution at 60 psig applied pressure
* 77 degrees F (25 C)
* pH 6.5-7.0
2. Dry type elements are vacuum leak tested using the San Diego Protocol.
3. All elements are packaged in a polyethylene bag containing 1.0% SBS (sodium bisulfite) solution.
Membrane type: Thin-Film Composite
Membrane material: Polyamide (PA)
Element configuration: Spiral-Wound, Tape Wrapping
|A) Diameter of Center Feed Post
|B) Length from end of feed post to membrane wrap
|C) Over-all length from end of feed post to end of Permeate post
|D) Diameter of membrane wrap
|E) Length from membrane wrap to end of Permeate post
These 10 inch x 2.5 inch sediment filters are made of 100% high purity polypropylene, surfactant free, binder free and adhesive free. These sediments have a special design to trap particulates. Four layers, with outside-in flow and step-by-step micron rating that effectively retains particles and extends the filter life with a much lower pressure drop. Sediment filters are in compliance with FDA requirements and they are NSF Standard 42 certified. Specifications; One (1), five (5), ten (10), twenty (20) or fifty (50) micron rating, up to 8 gallon flow rate, 10" length and 2.5 OD"
They have great particle holding capacity and are being used in a variety of applications such as pre-filters for reverse osmosis systems, pre-filters for water filtration units, aquarium pre-filters and being used as sediment collectors for whole house systems.
Sediment Filter Specifications and Data Information:
Filter - Length 9 7/8" x 2.5" diameter (commonly referred to as 10" x 2.5")
Enhanced Dirt Holding Capacity
High Consistency Melt Blow Polypropylene
Easy and Safe Cartridge Incineration and Disposal
Free of Surfactants, Binders and Adhesives
Ideal for use as pre-treatment to a RO Reverse Osmosis
Drinking Water System
Meets FDA compliance for food and beverage contact
Contains no wetting agents, solvents, antistatic agents or binders.
Available Micron Ratings:
1, 5, 10, 20 and 50
Bonded micro-fiber construction offers no fiber release
Superior chemical resistance and is not prone to bacterial attack
Performance Tested - NSF and FDA certified
This carbon block filter is manufactured with high purity Coconut Shell activated carbon with extruded activated carbon block construction. They do not release carbon fines and they are FDA compliant and they are NSF certified. These solid carbon block filters have combined the adsorption capability of carbon, with the ability of a solid block material to selectively strain out particles from the water that is being forced through the filter.
Activated carbon has an electro-positive charge added which results in this type of carbon attracting more chemicals and impurities. As the water passes through the positively charged carbon, the contaminants with their negative ions, are attracted to the carbon granules and thus extracted from the water.
The block of carbon strains out sediment, dirt, bacteria, microscopic worms, algae, asbestos and cryptosporidium. With just water pressure, this compacted solid carbon block is designed to filter sub micron size particles. This microstraining of the water will provide the cleanest and clearest drinking water available.
Activated carbon bonds to thousands of known chemicals. As water is forced through this solid block of carbon, it is forced to slow its flow speed and thereby increase the contact time with the carbon. This slowing of the flow allows the carbon bonding to take place and remove chemical pollutants like toxins, THM's, chlorine, pesticides, bad tastes, odors, etc.
Solid block carbon filters are very uniform and do not channel or bypass as conventional granular activated carbon (GAC) filters are know to do.
Because of the density of the solid block carbon filters, there is no room for bacteria to grow, so these filters do not become an incubator for bacteria as GAC filter are known to be.
These carbon block filters will fit most types of 10" x 2.5" filter housings on the market today and as noted previously, they will fit into the housings on nearly all water filtration and reverse osmosis systems. CTO carbon block filters preform well in both commercial and residential applications and they are the most widely used carbon filters on the market today.
Carbon Filter Specifications and Data Information:
Filter - Length 10" x 2.5" diameter
>99.5% Reduction of Particles (5 micron filter)
Enhanced Dirt Holding Capacity
No Release of Carbon Fines
Significantly Exceeds Performance of Traditional GAC and PAC Filters
6,000 gallons of chlorine removal capacity
Performance Tested - NSF and FDA certified
It is recommended that you install a pressure regulator if your incoming water pressure exceeds 50psi. Top quality clear housing with 1/4 inch inlet and outlet ports. Clear housings will permit you to observe the filters and thereby allow you to monitor the depletion of the filters. This will take the guess work out of when to replace your filters.
Housing Specifications and Data Information:
> Material (sump and cap) - Polypropylene
> Material (o-ring) - EPDM
> Max. Temp. - 125 degrees (F)
> Min. Temp. - 40 degrees (F)
> Max. PSI - 50 psi
> Threads - Straight
10" DI Refillable Filter Cartridge - Inserts into a standard 10 inch Clear Housing
This is a 10 inch refillable cartridge with 12.5 ounces of DI (Deionization - Demineralized) mixed bed color changing resin installed. When this DI filter is installed as one of the stages (process) of a 6 stage Reverse Osmosis system, the 12.5 ounces of resin will (on average) process about 900 to 1,000 gallons of water.
Reverse Osmosis units are capable of removing 90% to 95% of the TDS (Total Dissolved Solids). If your water usage requires zero (0) TDS, this 10" refillable cartridge will provide the quality of water you are seeking. This DI cartridge filter inserted into a clear housing is compatible with RO systems and will polish the water to the highest quality of zero (0) TDS.
The cartridge is 2 5/8" x 10" with a cap that can be easily removed to dispose of the old resin and then refill with new resin when your filter requires attention.
Our web site also has replacement DI resin for your continued use of this DI filter housing.
Inline Carbon Water Filter
This 10" inline filter can be used with an Ice maker & Refrigerator, Reverse Osmosis system, Aquarium, coffee maker and other applications that require filtered water.
Taste & Odor Removal
Maximum Flow .75 GPM
Maximum Pressure 50 PSI
Maximum Temp 100 F
Service Life 1500 Gallons
Inline filters are composed of a high performance granulated activated carbon that polishes the product water (reverse osmosis system) from the storage tank to your water source requirement, eliminating taste and odor problems prior to use.
The activated carbon in this filter has an electro-positive charge added which results in this type of carbon attracting more chemicals and impurities. As the water passes through the positively charged carbon, the contaminants with their negative ions, are attracted to the carbon granules and thus extracted from the water.
Ultraviolet Light (Sterilizer) with UV Lamp Ballast
Ultraviolet is recognized as superior compared to other methods of disinfection;
* UV is very safe. There are no dangerous chemicals to handle or monitor. Disinfection results are immediate.
* UV has a low initial system cost and a very low cost of operation.
* UV is environmentally friendly. There are no byproducts from the UV process, and nothing is discharged into the environment.
* UV causes no change to the taste or odor of the water disinfected. It is impossible to over-treat water with UV.
* UV systems are very easy to install and maintain.
* UV disinfection is compatible with all other forms of water treatment.
How UV works.
The water enters an ultraviolet sterilization chamber where any viruses, bacteria, mold, and other living microorganisms are bombarded with special, intense light of a specific wave length. The UV light penetrates the wall of the organisms and attacks their DNA structure leaving the organism unable to reproduce (or
"dead"). UV technology is recognized by the EPA as one of four approved methods of sterilizing
water, and is preferable over the other three methods (chlorine, iodine, and distillation) due to the
cost of treatment and effectiveness of UV (UV works almost instantaneously, leaving no residuals or chemicals in the water). This UV module operates for a full year at 30,000 microwatt seconds/cm². As a point of reference, the items below are a list of common bacteria and viruses that UV will render harmless.
BACTERIA : Bacillus, anthacis B., Megaatherium sp. (veg.), B. Megaatherium sp. (spores),
B. paratyphosus, B. subtilis, B. subtilis spores, Clostridium tetani, Corynebacterium diphtheria,
Dysentery baccili, Eberthella typhosa, Escherichia coli, Leptospira, Micrococcus candidus,
Micrococcus sphaeroides, Mycobacterium tuberculosis, Neisseria catarrhalis, Phytomonas
tumefaciens, Proteus vulgaris, Pseudomonas aeruginosa, Pseudomonas fluorescens, Salmonella,
S. enteritidis, S. typhimurium, S. typhosa, Sarcina lutea, Serratia marcescens, Shigella
dysenteriae, Shigella paradysenteriae, Spirillum rubrum, Staphylococcus albus, Staphylococcus
aureus, Streptococcus hemolyticus, Streptococcus viridans, Vibrio cholerae
MOLD SPORES : Mucor racemosus A, Mucor racemosus B, Oospora lactis
PROTOZOA : Chlorella vulgaris (algae)
VIRUSE : Bacteriophage (E. coli), Hepatitus virus, Influenza virus, Polio virus
YEAST : Bakers' yeast, Brewers' yeast, Common yeast cake, Saccharomyces cerevisiae,
Saccharomyces ellipsoideus, Saccharomyces sp.
PERMEATE PUMP by Aquatec
What does a Permeate pump do to improve my RO system?
A permeate pump is a simple, yet revolutionary devise. Powered only by the hydraulic
energy of the brine water lost to the drain (i.e. no electricity required), the permeate pump
forces product water into the storage tank, reducing membrane back pressure and
maximizing available feed pressure. These pumps dramatically improve the efficiency of the RO systems water production, while reducing wastewater by up to 80%. In other words if your current system requires 6, 7 or more gallons of tap water to produce a gallon of pure water, adding a Permeate Pump should reduce this ratio below 3:1. Permeate Pumps can also bring storage tanks up to line pressure and then shut the system down when these tanks reach capacity, eliminating the need for an ASO shut-off valve. Other benefits include higher delivery pressures, faster R.O. water production, superior water quality, and extended filter/membrane life.
A Reverse Osmosis drinking water system requires strong water pressure to force water through the R.O. membrane and at the same time to flush the contaminants (bad elements) to the drain. The lower the water pressure, the less "good" water (permeate) you get and the more "waste" water you send to the drain. The average membrane rating is based on a constant feed water pressure of (50) psi using 77 degree water. The average "real life" application provides much less favorable conditions than this. The end result is that your R.O. system is drastically under-performing because of lower pressure and water temperature. To make matters worse, the pressure storage tank that stores your RO water compounds this problem. When full the RO storage tank has an internal pressure of about 60% of your tap water . This pressure is fighting the inlet water pressure (water coming into your RO system from your tap water source). The incoming water pressure is trying to force water through the RO membrane and into the tank. Even if you have good incoming water pressure of 60 psi, as the tank gets close to full, the actual pressure on the membrane
is only 20 psi because of the off-setting pressure from the storage tank. This will result in reduced permeate (good water) production and vastly increase the flow of water to the drain.
A permeate pump will improve water quality through better membrane efficiency. In the typical RO system, increased tank pressure causes decreased pressure across the membrane. This decreased pressure causes a substantial decline in system performance and efficiency. A Permeate Pump enhanced RO system maintains full pressure across the RO membrane, even as tank pressure reaches its maximum levels. This reduced back pressure from the storage tank ensures better water quality (maximum TDS reduction), longer filter life and extended membrane life. In the standard RO system, increased tank pressure results in decreased recovery rates. A Permeate Pump enhanced RO system, by automatically minimizing back pressure will accelerate recovery rates (and reduce tank refill times) by up to 65%. Reduces wastewater. In typical R.O. systems, several gallons of wasted tap water (discharged to drain) are required to create a single gallon of purified R.O. water. A Permeate Pump enhanced R.O. system, will reduce wastewater by up to 80%.
HOW DOES THE PERMEATE PUMP REDUCE WASTE WATER BY 80%
The product water production rate is dependent on the pressure across the membrane, while the waste water production rate is mostly dependent on tap water pressure. As a bladder tank fills with water, its back pressure quickly starts to reduce the working pressure across the RO membrane, while the waste water flows as always. A curve can be plotted that shows progressively worsening ratios as the tank continues to fill. Half-way through the filling time, the ratio is already 8 or 10 to 1 and can be higher than 20:1 at the moment the ASO valve shuts off completely. The permeate pump makes the membrane perform like the bladder isn't there. The pump removes the pressure from the back side of the membrane and allows the system to function as if it were not forcing water into a tank. All of the work goes into making water. So, yes the pump can save up to (80%) of the normal waste water. The permeate pump works to eliminate this line pressure and allows the water to flow freely through the RO membrane and into the pressurized storage tank. An added benefit to the permeate pump is it drastically reduces the amount of waste water an RO produces. These pumps are used for pressure ranges from 30-75psi
A RO unit with a permeate pump and 60 psi coming in will continue to produce water until pressure in the tank reaches almost 60 psi. This is especially helpful for low-pressure installations. If, for example, you have a well system that provides only 40 psi, a standard RO unit will run, but it won't run well. The unit will shut down when storage tank pressure reaches 25 psi or so. With a permeate pump, the unit will put almost the full 40 psi into the storage tank.
What's best about the permeate pump, though, is the increased efficiency. With a standard shutoff system, as the pressurized storage tank fills, the RO unit must push against an increasing amount of storage tank pressure. With the permeate pump, the unit is shielded from this pressure and the RO membrane works in a virtually pressure-free situation, even when the tank is almost full.
Reverse Osmosis Storage Tank
This steel storage tank has a bladder with 10 psi for moving the water from the tank to the faucet and/or refrigerator.
1) 3.2 gallon bladder tank
2) Tanks diameter is 11 inches
3) Overall tank height is 16 1/2 inches including 1 1/2 inches for the tank shut off valve.
4) Tank shut off valve has a 1/4 inch quick connect fitting - just insert the 1/4 inch tubing into the quick connect on the shut off valve and your line is hooked up and ready to go.
5) These tanks are NSF approved.
6) Color may vary (white or blue)
