*******This Product has been******* *****customized/built in the USA*****
5 Stage Reverse Osmosis + Ultraviolet System Model RO5CL50SCUVPNT (system available with reverse osmosis membrane options of - 24 gpd, 35 gpd, 50 gpd, 80 gpd 100 gpd or 150 gpd- select your gallons per day system from the RO membrane option listed above). The Ultraviolet unit kills 99.9% of harmful bacteria (E Coli, Coliforms, Viruses Fungi, Algae, Spores etc.)
Note: 1 The pricing listed above is for this 5 stage system with a 80 gallon per day RO membrane. The RO membrane capacity is your choice and the price for the system will vary by your selection of a RO membrane capacity from the option above.
Note: 2 The micron rating for these filters is your choice - click on the Sediment Micron and the Carbon Micron options above and make your selection. Note: You will receive 1 sediment from your sediment selection and 1 carbon filter Filter end cap color will vary by micron rating.
This Reverse Osmosis five stage system will provide top quality water and it has clear housings on the two pre-filters, which not only makes this unit sparkle, this feature also takes the guess work out of replacement of filters. This is a quality unit from a company with over 20 years of water experience and hundreds of water items listed here on this web site.
This system includes:
1) 80 gallon per day membrane (Optional capacity RO membrane available above)
2) Membrane housing
3) 2 clear housings - 10 inch
4) 1 Sediment filter - (9 3/4" x 2.5")
5) 1 Carbon block filter - (9 3/4" x 2.5")
6) 1 GPMUltraviolet (Sterilizer) unit Stainless Steel Housing

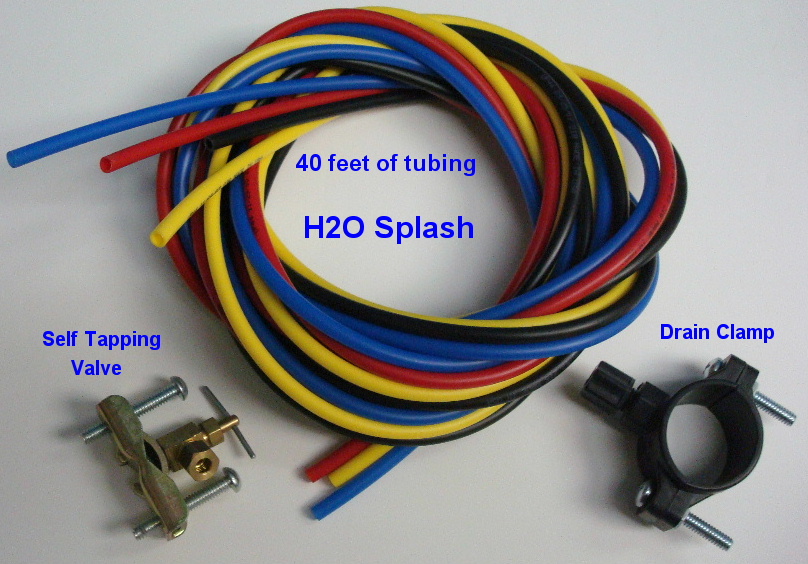

7) Saddle valve kit
8) Flow restrictor (to match the RO membrane size selected above)
9) Automatic shut-off valve
10) Check valve
11) Drain clamp
12) Filter wrench
13) Tubing - 4 colors @ 10 foot each - total of 40 feet
15) 1 Inline carbon filter (Polish Filter)
16) 1 dual bracket
This is an assembled complete system (ready to be installed) and the installation instructions will be emailed.
Special Note # 1:
This RO system comes without a storage tank and without a faucet kit. The system is customized for users with an existing storage tank or for dispensing directly into an aquarium or other holding system.
Special Note # 2:
All of the sediment and carbon filter housings are standard 10 inch clear housings with 1/4 inch thread inlet and outlet ports. Clear housings will permit you to observe the filters and thereby allow you to monitor the depletion of the filters. This will take the guess work out of when to replace your filters.
CSM Membrane Elements
CSM reverse osmosis membrane elements for home drinking water are the among industry’s most reliable. Advanced membrane technology and automated fabrication allow these elements to deliver consistent performance that equipment suppliers, water treatment dealers, and residential customers can rely on. CSM elements are shipped dry for convenient handling and long shelf-life. Dry type elements are vacuum leak tested using the Sandiego Protocol so that the performance shall satisfy their specifications. These elements are NSF/ANSI Standard 58 listed.
SPECIFICATIONS: General Features
1. The stated product performance is based on data taken after 30 minutes of operation at the following test conditions: • 250 mg/L NaCl solution at 60 psig applied pressure • 77 degrees F (25 C) • pH 6.5–7.0
2. Dry type elements are vacuum leak tested using the San Diego Protocol.
3. All elements are packaged in a polyethylene bag containing 1.0% SBS (sodium bisulfite) solution. ____________________________________________________________
Membrane type: Thin-Film Composite
Membrane material: Polyamide (PA)
Element configuration: Spiral-Wound, Tape Wrapping ____________________________________________________________ Dimensions -
A) Diameter of Center Feed Post
B) Length from end of feed post to membrane wrap
C) Over-all length from end of feed post to end of Permeate post
D) Diameter of membrane wrap
E) Length from membrane wrap to end of Permeate post
These 10 inch x 2.5 inch sediment filters are made of 100% high purity polypropylene, surfactant free, binder free and adhesive free. These sediments have a special design to trap particulates. Four layers, with outside-in flow and step-by-step micron rating that effectively retains particles and extends the filter life with a much lower pressure drop. Sediment filters are in compliance with FDA requirements and they are NSF Standard 42 certified. Specifications; One (1), five (5), ten (10), twenty (20) or fifty (50) micron rating, up to 8 gallon flow rate, 10" length and 2.5 OD"
They have great particle holding capacity and are being used in a variety of applications such as pre-filters for reverse osmosis systems, pre-filters for water filtration units, aquarium pre-filters and being used as sediment collectors for whole house systems.
Sediment Filter Specifications and Data Information:
Filter - Length 9 7/8" x 2.5" diameter (commonly referred to as 10" x 2.5")
Enhanced Dirt Holding Capacity
High Consistency Melt Blow Polypropylene
Easy and Safe Cartridge Incineration and Disposal
Free of Surfactants, Binders and Adhesives
Ideal for use as pre-treatment to a RO Reverse Osmosis Drinking Water System
Meets FDA compliance for food and beverage contact
Contains no wetting agents, solvents, antistatic agents or binders.
Available Micron Ratings: 1, 5, 10, 20 and 50
Bonded micro-fiber construction offers no fiber release
Superior chemical resistance and is not prone to bacterial attack
Performance Tested - NSF and FDA certified
This carbon block filter is manufactured with high purity Coconut Shell activated carbon with extruded activated carbon block construction. They do not release carbon fines and they are FDA compliant and they are NSF certified. These solid carbon block filters have combined the adsorption capability of carbon, with the ability of a solid block material to selectively strain out particles from the water that is being forced through the filter.
Activated carbon has an electro-positive charge added which results in this type of carbon attracting more chemicals and impurities. As the water passes through the positively charged carbon, the contaminants with their negative ions, are attracted to the carbon granules and thus extracted from the water.
The block of carbon strains out sediment, dirt, bacteria, microscopic worms, algae, asbestos and cryptosporidium. With just water pressure, this compacted solid carbon block is designed to filter sub micron size particles. This microstraining of the water will provide the cleanest and clearest drinking water available.
Activated carbon bonds to thousands of known chemicals. As water is forced through this solid block of carbon, it is forced to slow its flow speed and thereby increase the contact time with the carbon. This slowing of the flow allows the carbon bonding to take place and remove chemical pollutants like toxins, THM's, chlorine, pesticides, bad tastes, odors, etc.
Solid block carbon filters are very uniform and do not channel or bypass as conventional granular activated carbon (GAC) filters are know to do.
Because of the density of the solid block carbon filters, there is no room for bacteria to grow, so these filters do not become an incubator for bacteria as GAC filter are known to be.
These carbon block filters will fit most types of 10" x 2.5" filter housings on the market today and as noted previously, they will fit into the housings on nearly all water filtration and reverse osmosis systems. CTO carbon block filters preform well in both commercial and residential applications and they are the most widely used carbon filters on the market today.
Carbon Filter Specifications and Data Information:
Filter - Length 10" x 2.5" diameter
>99.5% Reduction of Particles (5 micron filter)
Enhanced Dirt Holding Capacity
No Release of Carbon Fines
Significantly Exceeds Performance of Traditional GAC and PAC Filters
6,000 gallons of chlorine removal capacity
Performance Tested - NSF and FDA certified
It is recommended that you install a pressure regulator if your incoming water pressure exceeds 70psi. Top quality clear housing with 1/4 inch inlet and outlet ports. Clear housings will permit you to observe the filters and thereby allow you to monitor the depletion of the filters. This will take the guess work out of when to replace your filters.
Housing Specifications and Data Information:
> Material (sump and cap) - Polypropylene
> Material (o-ring) - EPDM
> Max. Temp. - 125 degrees (F)
> Min. Temp. - 40 degrees (F)
> Max. PSI - 50 psi
> Threads - Straight
Inline Carbon Water Filter
This 10" inline filter can be used with an Ice maker & Refrigerator, Reverse Osmosis system, Aquarium, coffee maker and other applications that require filtered water.
Taste & Odor Removal
Maximum Flow .75 GPM
Maximum Pressure 50 PSI
Maximum Temp 100 F
Service Life 1500 Gallons
Inline filters are composed of a high performance granulated activated carbon that polishes the product water (reverse osmosis system) from the storage tank to your water source requirement, eliminating taste and odor problems prior to use.
The activated carbon in this filter has an electro-positive charge added which results in this type of carbon attracting more chemicals and impurities. As the water passes through the positively charged carbon, the contaminants with their negative ions, are attracted to the carbon granules and thus extracted from the water. _______________________________________________
Ultraviolet Light (Sterilizer) with UV Lamp Ballast
Ultraviolet is recognized as superior compared to other methods of disinfection;
* UV is very safe. There are no dangerous chemicals to handle or monitor. Disinfection results are immediate.
* UV has a low initial system cost and a very low cost of operation.
* UV is environmentally friendly. There are no byproducts from the UV process, and nothing is discharged into the environment.
* UV causes no change to the taste or odor of the water disinfected. It is impossible to over-treat water with UV.
* UV systems are very easy to install and maintain.
* UV disinfection is compatible with all other forms of water treatment.
How UV works. The water enters an ultraviolet sterilization chamber where any viruses, bacteria, mold, and other living microorganisms are bombarded with special, intense light of a specific wave length. The UV light penetrates the wall of the organisms and attacks their DNA structure leaving the organism unable to reproduce (or "dead"). UV technology is recognized by the EPA as one of four approved methods of sterilizing water, and is preferable over the other three methods (chlorine, iodine, and distillation) due to the cost of treatment and effectiveness of UV (UV works almost instantaneously, leaving no residuals or chemicals in the water). This UV module operates for a full year at 30,000 microwatt seconds/cm². As a point of reference, the items below are a list of common bacteria and viruses that UV will render harmless.
BACTERIA : Bacillus, anthacis B., Megaatherium sp. (veg.), B. Megaatherium sp. (spores), B. paratyphosus, B. subtilis, B. subtilis spores, Clostridium tetani, Corynebacterium diphtheria, Dysentery baccili, Eberthella typhosa, Escherichia coli, Leptospira, Micrococcus candidus, Micrococcus sphaeroides, Mycobacterium tuberculosis, Neisseria catarrhalis, Phytomonas tumefaciens, Proteus vulgaris, Pseudomonas aeruginosa, Pseudomonas fluorescens, Salmonella, S. enteritidis, S. typhimurium, S. typhosa, Sarcina lutea, Serratia marcescens, Shigella dysenteriae, Shigella paradysenteriae, Spirillum rubrum, Staphylococcus albus, Staphylococcus aureus, Streptococcus hemolyticus, Streptococcus viridans, Vibrio cholerae
MOLD SPORES : Mucor racemosus A, Mucor racemosus B, Oospora lactis Penicillium expansum
PROTOZOA : Chlorella vulgaris (algae)
VIRUSE : Bacteriophage (E. coli), Hepatitus virus, Influenza virus, Polio virus
YEAST : Bakers' yeast, Brewers' yeast, Common yeast cake, Saccharomyces cerevisiae, Saccharomyces ellipsoideus, Saccharomyces sp. ___________________________________________
