6 Stage RO / DI System (White Housings)

  • 6 Stage RO / Inline DI System (White Housings) with Tank
  • 6 Stage RO / Inline DI System (White Housings) with Tank
  • 6 Stage RO / Inline DI System (White Housings) with Tank
  • 6 Stage RO / Inline DI System (White Housings) with Tank
Click Image(s) to Enlarge
Regular Price:$388.95
Sale Price:$352.95
Questions? Contact Us!

Product Description

*******This Product has been******* *****customized/built in the USA*****

6 Stage Reverse Osmosis System Model RO6WH50SCCDIP (system available with reverse osmosis membrane options of - 24 gpd, 35 gpd, 50 gpd, 100 gpd or 150 gpd - select your gallons per day system from the RO membrane option listed above)

Note 1: The pricing listed above is for this 6 stage system with a 50 gallon per day RO membrane. The RO membrane capacity is your choice and the price for the system will vary by your selection of a RO membrane capacity from the option above.

Note: 2 The micron rating for these filters is your choice - click on the Sediment Micron and the 1st and 2nd Carbon Micron options above and make your selection. Note: You will receive 1 sediment from your sediment selection and 1 carbon filter from each of your 1st and 2nd carbon selections (total of 2 carbons). Filter end cap color will vary by micron rating.

This Reverse Osmosis six stage system will provide top quality water and it has white housings on the three pre-filters.The inline DI filter will polish the water to the highest quality of zero (0) TDS. This is a quality unit from a company with over 20 years of water experience and hundreds of water items listed here on this web site.

This system includes:

1) 50 (or your choice) gallon per day CSM membrane (Optional capacity RO membrane available above)

2) Membrane housing

3) 3 housings - 10 inch

4) 1 Sediment filter - (9 3/4" x 2.5")

5) 2 Carbon block filters - (9 3/4" x 2.5")

6) 1 Inline DI filter with 6 ounces of DI resin

7) Saddle valve kit

8) Flow restrictor (to match the RO membrane size selected above)

9) Automatic shut-off valve

10) Check valve

11) Drain clamp

12) Filter wrench

13) 3.2 Gallon storage tank

14) Tubing - 4 colors @ 10 foot each - total of 40 feet

15) Fittings

16) Faucet kit

17) 1 Inline carbon filter (Polish Filter)

18) 1 Triple bracket

This is an assembled complete system (ready to be installed) and the installation instructions will be Emailed.

Special Note # 1:

This RO system comes with a storage tank and with a faucet kit. The system is complete and ready for users to install under the sink, in the utility room , in the garage or other location for delivery of purified water to a drinking water faucet, refrigerator or ice maker.

Special Note # 2:

All of the sediment and carbon filter housings are standard 10 inch housings with 1/4 inch thread inlet and outlet ports.

CSM Membrane Elements

CSM reverse osmosis membrane elements for home drinking water are the among industry's most reliable. Advanced membrane technology and automated fabrication allow these elements to deliver consistent performance that equipment suppliers, water treatment dealers, and residential customers can rely on. CSM elements are shipped dry for convenient handling and long shelf-life. Dry type elements are vacuum leak tested using the Sandiego Protocol so that the performance shall satisfy their specifications. These elements are NSF/ANSI Standard 58 listed.

SPECIFICATIONS: General Features

Model Flow REJ. DIAM. LEN. Test Conditions Temp.
RE1812-24 24gpd 98% 1.8" 12" 60psi/250ppm 25C/77F.
RE1812-35 35gpd 98% 1.8" 12" 60psi/250ppm 25C/77F.
RE1812-50 50gpd 98% 1.8" 12" 60psi/250ppm 25C/77F.
RE1812-80 80gpd 98% 1.8" 12" 60psi/250ppm 25C/77F.
RE2012-100 100gpd 98% 2" 12" 60psi/250ppm 25C/77F.
RE2012-150 150gpd 93% 2" 12" 50psi/100ppm 25C/77F.

1. The stated product performance is based on data taken after 30 minutes of operation at the following test conditions: * 250 mg/L NaCl solution at 60 psig applied pressure * 77 degrees F (25 C) * pH 6.5-7.0

2. Dry type elements are vacuum leak tested using the San Diego Protocol.

3. All elements are packaged in a polyethylene bag containing 1.0% SBS (sodium bisulfite) solution.

Membrane type: Thin-Film Composite

Membrane material: Polyamide (PA)

Element configuration: Spiral-Wound, Tape Wrapping

Dimensions -

Model A B C D E
RE1812-24 .67 inch .87 inch 11.73 inch 1.77 inch .98 inch
RE1812-35 .67 inch .87 inch 11.73 inch 1.77 inch .98 inch
RE1812-50 .67 inch .87 inch 11.73 inch 1.77 inch .98 inch
RE1812-80 .67 inch .87 inch 11.73 inch 1.77 inch .98 inch
RE2012-100 .67 inch .47 inch 11.73 inch 1.91 inch .98 inch
RE2012-150 .67 inch .47 inch 11.73 inch 1.91 inch .98 inch

A) Diameter of Center Feed Post
B) Length from end of feed post to membrane wrap
C) Over-all length from end of feed post to end of Permeate post
D) Diameter of membrane wrap
E) Length from membrane wrap to end of Permeate post

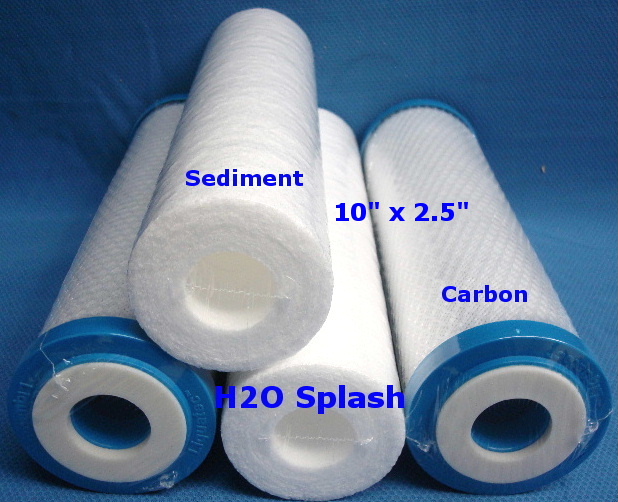

These 10 inch x 2.5 inch sediment filters are made of 100% high purity polypropylene, surfactant free, binder free and adhesive free. These sediments have a special design to trap particulates. Four layers, with outside-in flow and step-by-step micron rating that effectively retains particles and extends the filter life with a much lower pressure drop. Sediment filters are in compliance with FDA requirements and they are NSF Standard 42 certified. Specifications; One (1), five (5), ten (10), twenty (20) or fifty (50) micron rating, up to 8 gallon flow rate, 10" length and 2.5 OD"

They have great particle holding capacity and are being used in a variety of applications such as pre-filters for reverse osmosis systems, pre-filters for water filtration units, aquarium pre-filters and being used as sediment collectors for whole house systems.

Sediment Filter Specifications and Data Information:

Filter - Length 9 7/8" x 2.5" diameter (commonly referred to as 10" x 2.5")

Enhanced Dirt Holding Capacity

High Consistency Melt Blow Polypropylene

Easy and Safe Cartridge Incineration and Disposal

Free of Surfactants, Binders and Adhesives

Ideal for use as pre-treatment to a RO Reverse Osmosis Drinking Water System

Meets FDA compliance for food and beverage contact

Contains no wetting agents, solvents, antistatic agents or binders.

Available Micron Ratings: 1, 5, 10, 20 and 50

Bonded micro-fiber construction offers no fiber release

Superior chemical resistance and is not prone to bacterial attack

Performance Tested - NSF and FDA certified


This carbon block filter is manufactured with high purity Coconut Shell activated carbon with extruded activated carbon block construction. They do not release carbon fines and they are FDA compliant and they are NSF certified. These solid carbon block filters have combined the adsorption capability of carbon, with the ability of a solid block material to selectively strain out particles from the water that is being forced through the filter.

Activated carbon has an electro-positive charge added which results in this type of carbon attracting more chemicals and impurities. As the water passes through the positively charged carbon, the contaminants with their negative ions, are attracted to the carbon granules and thus extracted from the water.

The block of carbon strains out sediment, dirt, bacteria, microscopic worms, algae, asbestos and cryptosporidium. With just water pressure, this compacted solid carbon block is designed to filter sub micron size particles. This microstraining of the water will provide the cleanest and clearest drinking water available.

Activated carbon bonds to thousands of known chemicals. As water is forced through this solid block of carbon, it is forced to slow its flow speed and thereby increase the contact time with the carbon. This slowing of the flow allows the carbon bonding to take place and remove chemical pollutants like toxins, THM's, chlorine, pesticides, bad tastes, odors, etc.

Solid block carbon filters are very uniform and do not channel or bypass as conventional granular activated carbon (GAC) filters are know to do.

Because of the density of the solid block carbon filters, there is no room for bacteria to grow, so these filters do not become an incubator for bacteria as GAC filter are known to be.

These carbon block filters will fit most types of 10" x 2.5" filter housings on the market today and as noted previously, they will fit into the housings on nearly all water filtration and reverse osmosis systems. CTO carbon block filters preform well in both commercial and residential applications and they are the most widely used carbon filters on the market today.

Carbon Filter Specifications and Data Information:

Filter - Length 10" x 2.5" diameter

>99.5% Reduction of Particles (5 micron filter)

Enhanced Dirt Holding Capacity

No Release of Carbon Fines

Significantly Exceeds Performance of Traditional GAC and PAC Filters

6,000 gallons of chlorine removal capacity

Performance Tested - NSF and FDA certified


It is recommended that you install a pressure regulator if your incoming water pressure exceeds 70psi. Top quality housing with 1/4 inch inlet and outlet ports.

Housing Specifications and Data Information:

> Material (sump and cap) - Polypropylene

> Material (o-ring) - EPDM

> Max. Temp. - 125 degrees (F)

> Min. Temp. - 40 degrees (F)

> Max. PSI - 125 psi (6.3 bar)

> Cycle Tests (@ 125 psi) - 150,000 cycles

> Threads - Straight

Inline Carbon Water Filter

This 10" inline filter can be used with an Ice maker & Refrigerator, Reverse Osmosis system, Aquarium, coffee maker and other applications that require filtered water.

Taste & Odor Removal


Maximum Flow .75 GPM

Maximum Pressure 125 PSI

Maximum Temp 100 F

Service Life 1500 Gallons

Inline filters are composed of a high performance granulated activated carbon that polishes the product water (reverse osmosis system) from the storage tank to your water source requirement, eliminating taste and odor problems prior to use.

The activated carbon in this filter has an electro-positive charge added which results in this type of carbon attracting more chemicals and impurities. As the water passes through the positively charged carbon, the contaminants with their negative ions, are attracted to the carbon granules and thus extracted from the water.

10" DI Refillable Filter In-Line Housing With DI Resin

This is a 10 inch refillable in-line filter housing with 6 ounces of DI (Deionization - Demineralized) mixed bed resin installed. Reverse Osmosis units are capable of removing 90% to 98% of the TDS (Total Dissolved Solids). If your water usage requires zero (0) TDS, this 10" refillable in-line will provide the quality of water you are seeking. This DI in-line filter housing is compatible with RO systems and will polish the water to the highest quality of zero (0) TDS.

The housing is 2" x 10" with input and output 1/4 inch FPT. The cap can be easily removed to dispose of the old resin and then refill with new resin when your filter requires attention.

Our web site also has replacement DI resin for your continued use of this DI filter.

Reverse Osmosis Storage Tank

This steel storage tank has a bladder with 10 psi for moving the water from the tank to the faucet and/or refrigerator.

Tank specifications;

1) 3.2 gallon bladder tank

2) Tanks diameter is 11 inches

3) Overall tank height is 16 1/2 inches including 1 1/2 inches for the tank shut off valve.

4) Tank shut off valve has a 1/4 inch quick connect fitting - just insert the 1/4 inch tubing into the quick connect on the shut off valve and your line is hooked up and ready to go.

5) These tanks are NSF approved.

6) Color may vary (white or blue)

Need extra filters - click on Sediment Filters, Carbon Filters or Sediment and Carbon Combos below and you will be transferred to those categories

Sediment Filters

Carbon Filters

Sediment and Carbon Combos

Check our variety of Reverse Osmosis systems - 3 stage, 4 stage, 5 stage and 7 stage units - clear and white housings, 4 gallon, 14 gallons and 20 gallon storage tanks and RO membrane capacity of 24 gpd, 35 gpd, 50 gpg, 80 gpd, 100 gpd and 150 gpd.
