This package is for one Reverse Osmosis Membrane, one Carbon Filter, one Sediment Filter and one Inline Carbon Filter
Note 1: The pricing listed above is for this membrane/filter package with a 50 gallon per day RO membrane. The RO membrane capacity is your choice and the price for the system will vary by your selection of a RO membrane capacity from the option above.
Note 2: The micron rating for the filters is your choice - click on the Sediment Micron and Carbon Micron options above and make your selection. Carbon Filter end cap color will vary by micron rating.
Note 3: This sale is for one ( 1 ) filter, Quick Connect or FPT 1/4" fitting, your choice of Quick Connect or FPT Fitting. When the buyer does not make a selection, we ship Quick Connect.
This RO membrane/filter package will provide top quality water from your Reverse Osmosis system. This is a quality package from a company with over 20 years of water experience and hundreds of water items listed here on this web site.

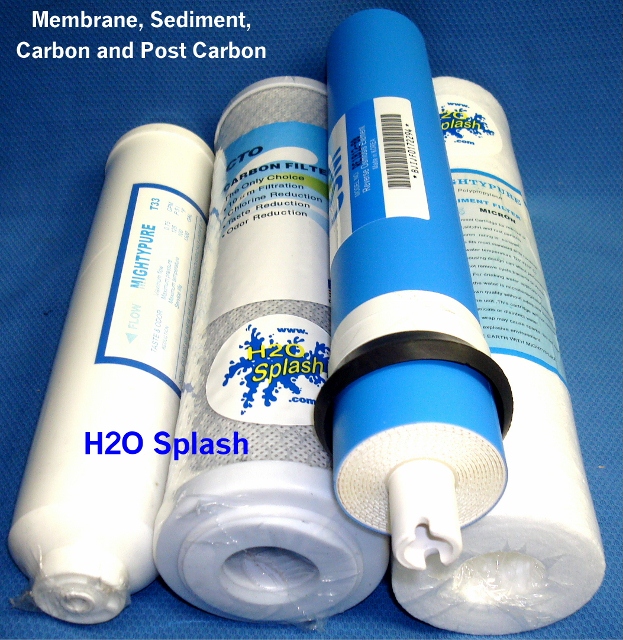

The Package includes the following:
1) One (1) Reverse Osmosis membrane - you may select the RO membrane size from the drop down option - RO membrane prices will vary by membrane size.
2) one (1) carbon block filter
3) one (1) sediment filter
4) one (1) quick connect inline carbon (polishing filter)
CSM Membrane Elements
CSM reverse osmosis membrane elements for home drinking water are the among industry's most reliable. Advanced membrane technology and automated fabrication allow these elements to deliver consistent performance that equipment suppliers, water treatment dealers, and residential customers can rely on. CSM elements are shipped dry for convenient handling and long shelf-life. Dry type elements are vacuum leak tested using the Sandiego Protocol so that the performance shall satisfy their specifications. These elements are NSF/ANSI Standard 58 listed.
SPECIFICATIONS: General Features
Model |
Flow |
REJ. |
DIAM. |
LEN. |
Test Conditions |
Temp. |
RE1812-24 |
24gpd |
98% |
1.8" |
12" |
60psi/250ppm |
25C/77F. |
RE1812-35 |
35gpd |
98% |
1.8" |
12" |
60psi/250ppm |
25C/77F. |
RE1812-50 |
50gpd |
98% |
1.8" |
12" |
60psi/250ppm |
25C/77F. |
RE1812-80 |
80gpd |
98% |
1.8" |
12" |
60psi/250ppm |
25C/77F. |
RE2012-100 |
100gpd |
98% |
2" |
12" |
60psi/250ppm |
25C/77F. |
RE2012-150 |
150gpd |
93% |
2" |
12" |
50psi/100ppm |
25C/77F. |
1. The stated product performance is based on data taken after 30 minutes of operation at the following
test conditions:
* 250 mg/L NaCl solution at 60 psig applied pressure
* 77 degrees F (25 C)
* pH 6.5-7.0
2. Dry type elements are vacuum leak tested using the San Diego Protocol.
3. All elements are packaged in a polyethylene bag containing 1.0% SBS (sodium bisulfite) solution.
Membrane type: Thin-Film Composite
Membrane material: Polyamide (PA)
Element configuration: Spiral-Wound, Tape Wrapping
Dimensions -
Model |
A |
B |
C |
D |
E |
RE1812-24 |
.67 inch |
.87 inch |
11.73 inch |
1.77 inch |
.98 inch |
RE1812-35 |
.67 inch |
.87 inch |
11.73 inch |
1.77 inch |
.98 inch |
RE1812-50 |
.67 inch |
.87 inch |
11.73 inch |
1.77 inch |
.98 inch |
RE1812-80 |
.67 inch |
.87 inch |
11.73 inch |
1.77 inch |
.98 inch |
RE2012-100 |
.67 inch |
.47 inch |
11.73 inch |
1.91 inch |
.98 inch |
RE2012-150 |
.67 inch |
.47 inch |
11.73 inch |
1.91 inch |
.98 inch |
A) Diameter of Center Feed Post |
B) Length from end of feed post to membrane wrap |
C) Over-all length from end of feed post to end of Permeate post |
D) Diameter of membrane wrap |
E) Length from membrane wrap to end of Permeate post |
Sediment Filter
This 10 inch sediment filter is made of 100% high purity polypropylene, surfactant free, binder free and adhesive free. This sediment has a special design to trap particulates. Four layers, with outside-in flow and step-by-step micron rating that effectively retains particles and extends the filter life with a much lower pressure drop. Sediment filters are in compliance with FDA requirements. Specifications; One (1), five (5), ten (10) or twenty (20) micron rating, up to 8 gallon flow rate, 10" length and 2 1/2 OD"
They have great particle holding capacity and are being used in a variety of applications such as pre-filters for reverse osmosis systems, pre-filters for water filtration units, aquarium pre-filters and being used as sediment collectors for whole house systems.
Specifications and Data Information - Sediment Filter:
Filter - Length 9 7/8" x 2.5" diameter (commonly referred to as 10" x 2.5")
Enhanced Dirt Holding Capacity
High Consistency Melt Blow Polypropylene
Easy and Safe Cartridge Incineration and Disposal
Free of Surfactants, Binders and Adhesives
Ideal for use as pre-treatment to a RO Reverse Osmosis
Drinking Water System
Meets FDA compliance for food and beverage contact
Contains no wetting agents, solvents, antistatic agents or binders.
Available Micron Ratings:
1, 5, 10, 20/25 and 50
Bonded micro-fiber construction offers no fiber release
Superior chemical resistance and is not prone to bacterial attack
Performance Tested - FDA certified
Carbon Filter
The carbon block filters are manufactured with high purity Coconut Shell activated carbon with extruded activated carbon block construction. They do not release carbon fines and they are FDA compliant These solid carbon block filters have combined the adsorption capability of carbon, with the ability of a solid block material to selectively strain out particles from the water that is being forced through the filter. Specifications; .5, one (1), five (5), or ten (10) micron rating, 10" length and 2 1/2 OD"
Activated carbon has an electro-positive charge added which results in this type of carbon attracting more chemicals and impurities. As the water passes through the positively charged carbon, the contaminants with their negative ions, are attracted to the carbon granules and thus extracted from the water.
The block of carbon strains out sediment, dirt, bacteria, microscopic worms, algae, asbestos and cryptosporidium. With just water pressure, this compacted solid carbon block is designed to filter sub micron size particles. This microstraining of the water will provide the cleanest and clearest drinking water available.
Activated carbon bonds to thousands of known chemicals. As water is forced through this solid block of carbon, it is forced to slow its flow speed and thereby increase the contact time with the carbon. This slowing of the flow allows the carbon bonding to take place and remove chemical pollutants like toxins, THM's, chlorine, pesticides, bad tastes, odors, etc.
Solid block carbon filters are very uniform and do not channel or bypass as conventional granular activated carbon (GAC) filters are know to do.
Because of the density of the solid block carbon filters, there is no room for bacteria to grow, so these filters do not become an incubator for bacteria as GAC filter are known to be.
These carbon block filters will fit most types of 10" filter housings on the market today and as noted previously, they will fit into the housings on nearly all water filtration and reverse osmosis systems. CTO carbon block filters preform well in both commercial and residential applications and they are the most widely used carbon filters on the market today.
Specifications and Data Information - Carbon Filter:
Filter - Length 9 3/4" x 2 1/2" diameter (commonly referred to as 10" x 2 1/2")
>99.5% Reduction of Particles (5 micron filter)
Enhanced Dirt Holding Capacity
No Release of Carbon Fines
Significantly Exceeds Performance of Traditional GAC and PAC Filters
6,000 gallons of chlorine removal capacity
Performance Tested - FDA certified
Inline Filter (Polish Filter)
Inline filters are composed of a high performance granulated activated carbon that polishes the product water from the storage tank to your water source requirement, eliminating taste and odor problems prior to use.
Activated carbon has an electro-positive charge added which results in this type of carbon attracting more chemicals and impurities. As the water passes through the positively charged carbon, the contaminants with their negative ions, are attracted to the carbon granules and thus extracted from the water.
Inline Carbon Filter Specifications:
Maximum Flow .75 GPM
Maximum Pressure 125 PSI
Maximum Temp 100 F
Service Life 1500 Gal
