20 Inch Clear Whole House Water Filter - Carbon Filter, Wrench and Ball Valve
This single clear whole house water filter has 3/4 inch threaded inlet and outlet ports and one ball valve to provide ease of filter replacement. The housing is suitable for use with 2 1/2 by 20 inch filters. One carbon filter is included in this package.
The micron rating for the filter is your choice - click on the Carbon Micron option above and make your selection. Carbon Filter end cap color will vary by micron rating.
This Package includes:
> One (1) Clear 20 Inch x 2.5 inch Filter Housing
> This is a high impact/reinforced housing
> Unit has a pressure release button
> 3/4 inch inlet and outlet ports
> ** One (1) 3/4 inch ball valve
> One (1) 20 inch by 2 1/2 inch carbon filter
> One (1) mounting bracket
> One (1) filter wrench
**One (1) reinforced heavy duty PVC ball valve (maintenance free and corrosion free) - to be used on either the inlet or the outlet side of a whole house water unit. On the inlet side it can be used to shut off the incoming water supply. On the outlet side of the whole house water filter unit it can be used to shut off the back flow of water from the water pipes located at a higher level and thereby avoid a water spill when changing the filter elements. The ball valve is shipped un-installed to avoid unit damage during shipment.
Top quality, heavy duty construction clear housing with 3/4 inch inlet and outlet ports. The unit has a pressure release button for ease of filter replacement. As noted above, the ball valve will provide assistance when replacing the filter. Clear housings will permit you to observe the filters and thereby allow you to monitor the depletion of the filters. This will take the guess work out of when to replace your filters.
Housing Specifications and Data Information:
> Material (sump and cap) - Polypropylene
> Material (o-ring) - EPDM
> Max. Temp. - 125 degrees (F)
> Min. Temp. - 40 degrees (F)
> Max. PSI - 50 PSI
> Threads - Straight
Potential Uses for 20" Clear Housing:
* Whole house filter to hold (sediment or Carbon)
* Pre-Filter housing for Reverse Osmosis
* Housing for a DI cartridge
* Pressure Release Button
* Housing for counter top water filter
* Suitable for homes and commercial uses
* Filters - sediment and carbon available in our store
* Visit other items on this web site for water

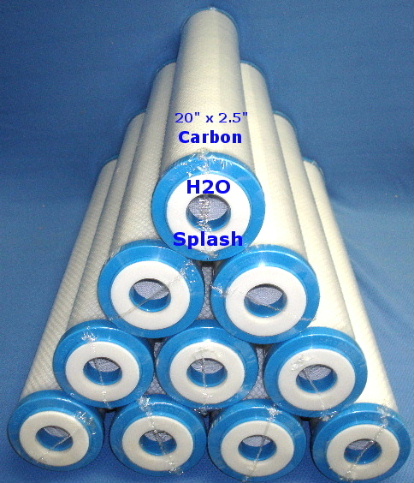

This carbon block filter is manufactured with high purity Coconut Shell activated carbon with extruded activated carbon block construction. They do not release carbon fines and they are FDA compliant and they are NSF certified. These solid carbon block filters have combined the adsorption capability of carbon, with the ability of a solid block material to selectively strain out particles from the water that is being forced through the filter.
Activated carbon has an electro-positive charge added which results in this type of carbon attracting more chemicals and impurities. As the water passes through the positively charged carbon, the contaminants with their negative ions, are attracted to the carbon granules and thus extracted from the water.
The block of carbon strains out sediment, dirt, bacteria, microscopic worms, algae, asbestos and cryptosporidium. With just water pressure, this compacted solid carbon block is designed to filter sub micron size particles. This microstraining of the water will provide clean and clear drinking water.
Activated carbon bonds to thousands of known chemicals. As water is forced through this solid block of carbon, it is forced to slow its flow speed and thereby increase the contact time with the carbon. This slowing of the flow allows the carbon bonding to take place and remove chemical pollutants like toxins, THM's, chlorine, pesticides, bad tastes, odors, etc.
Solid block carbon filters are very uniform and do not channel or bypass as conventional granular activated carbon (GAC) filters are know to do.
Because of the density of the solid block carbon filters, there is no room for bacteria to grow, so these filters do not become an incubator for bacteria as GAC filter are known to be.
These carbon block filters will fit most types of 20" x 2.5" filter housings on the market today and as noted previously, they will fit into the housings on nearly all water filtration and reverse osmosis systems. CTO carbon block filters preform well in both commercial and residential applications and they are the most widely used carbon filters on the market today.
Carbon Filter Specifications and Data Information:
Filter - Length 20" x 2.5" diameter
>99.5% Reduction of Particles (5 micron filter)
Enhanced Dirt Holding Capacity
No Release of Carbon Fines
Significantly Exceeds Performance of Traditional GAC and PAC Filters
12,000 gallons of chlorine removal capacity
Performance Tested - NSF and FDA certified
